DTC P1078, P1084: EVT Control Position Sensor
>>
Wiring Diagram
DTC P1078, P1084: EVT Control Position Sensor: Wiring Diagram

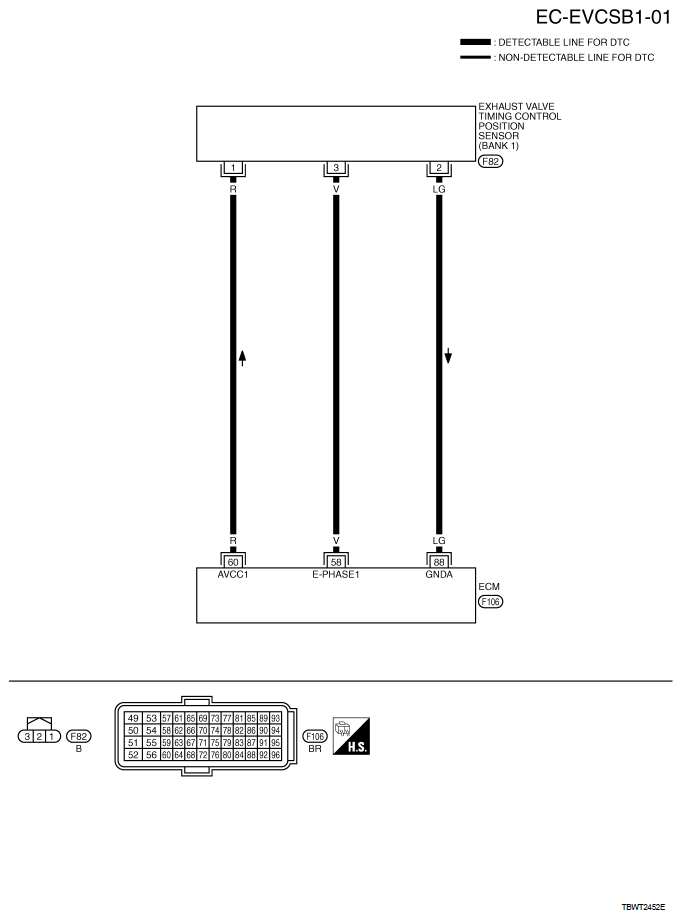

Fig 1: EC-EVCSB1-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

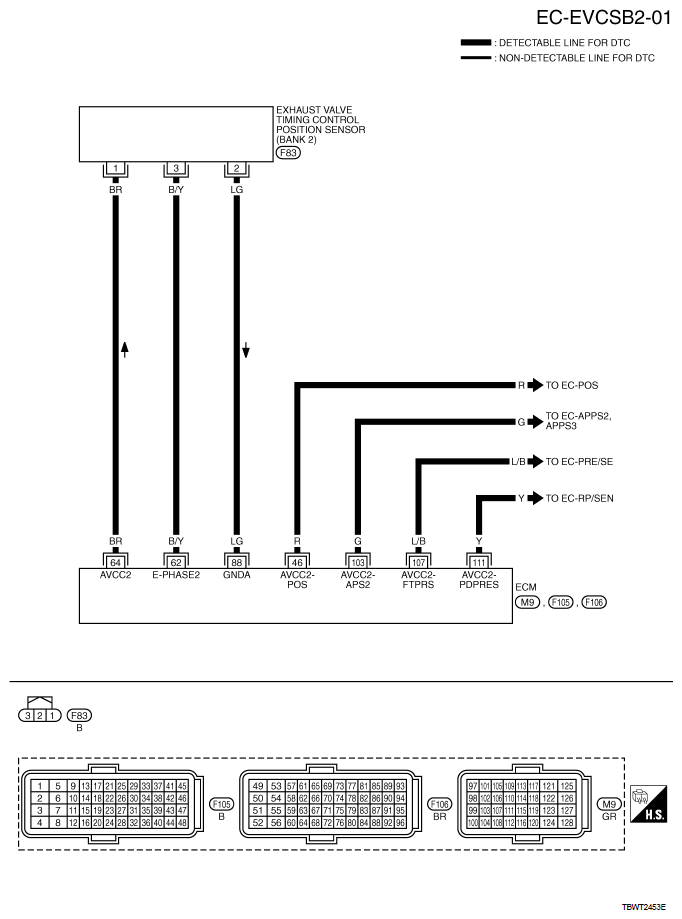

Fig 2: EC-EVCSB2-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
