VQ35HR Engine Models

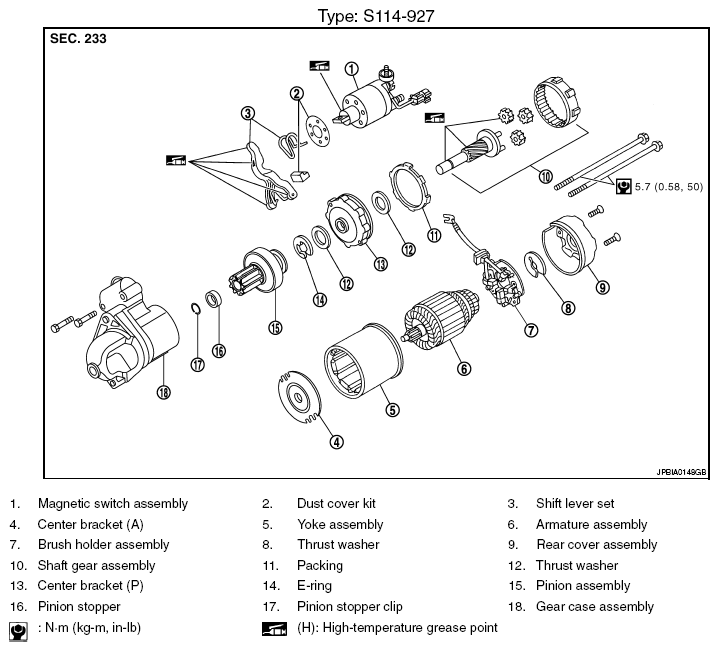

Fig 1: Disassembled View Of Starter (VQ35HR Engine Models) With Torque Specifications

G06310619

Courtesy of NISSAN MOTOR CO., U.S.A.
