Oil Cooler: Component

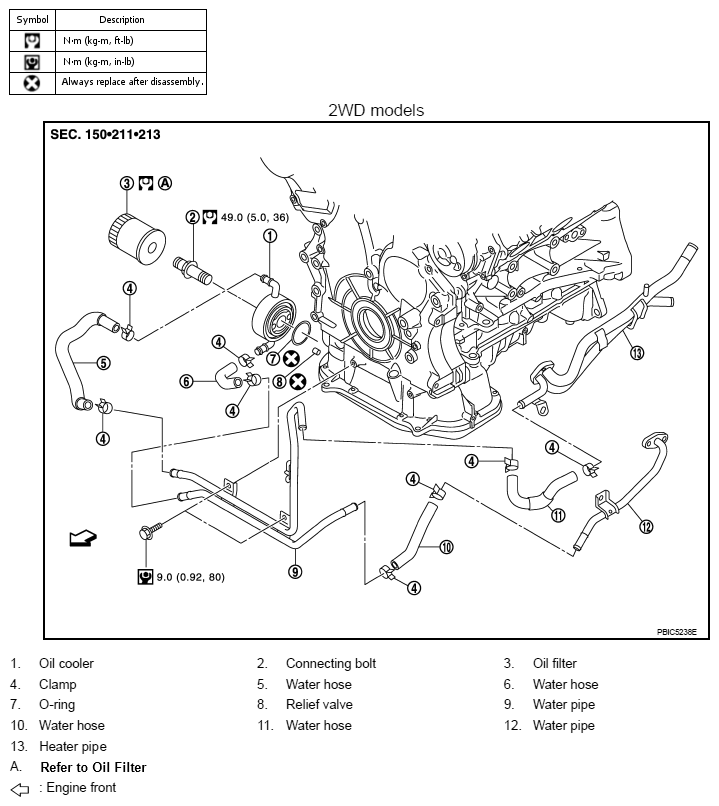

Fig 1: Oil Cooler Replacement Components - 2WD Models With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENT
for symbols above.

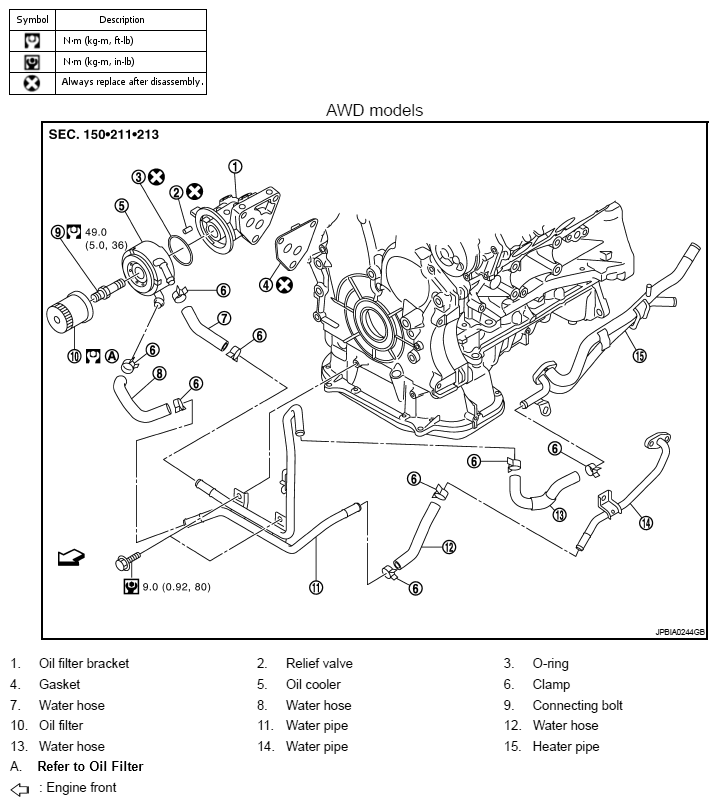

Fig 2: Oil Cooler Replacement Components - AWD Models With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENT
for symbols above.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
