CAN Communication Signal Table

Refer to HOW TO USE CAN COMMUNICATION SIGNAL TABLE .

NOTE: Refer to ABBREVIATION LIST  for the abbreviations of the connecting units.

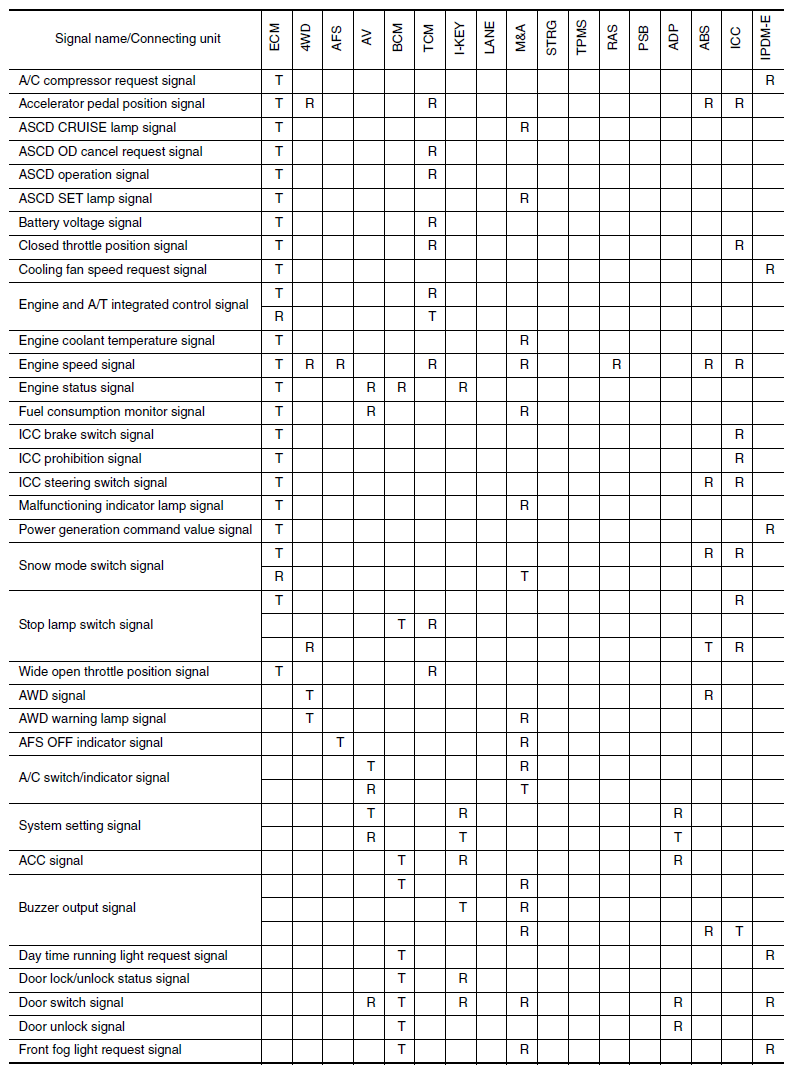

Fig 1: CAN Communication Signal Table (1 Of 3)
G06308407Courtesy of NISSAN MOTOR CO., U.S.A.

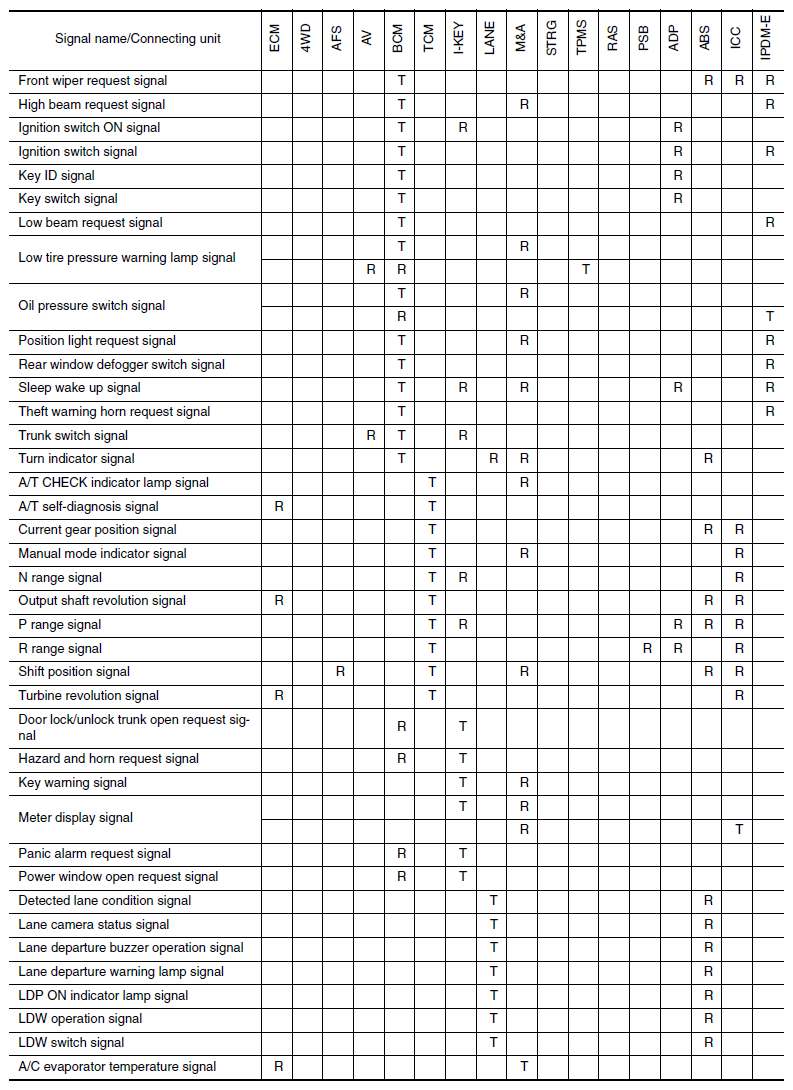

Fig 2: CAN Communication Signal Table (2 Of 3)
G06308408Courtesy of NISSAN MOTOR CO., U.S.A.

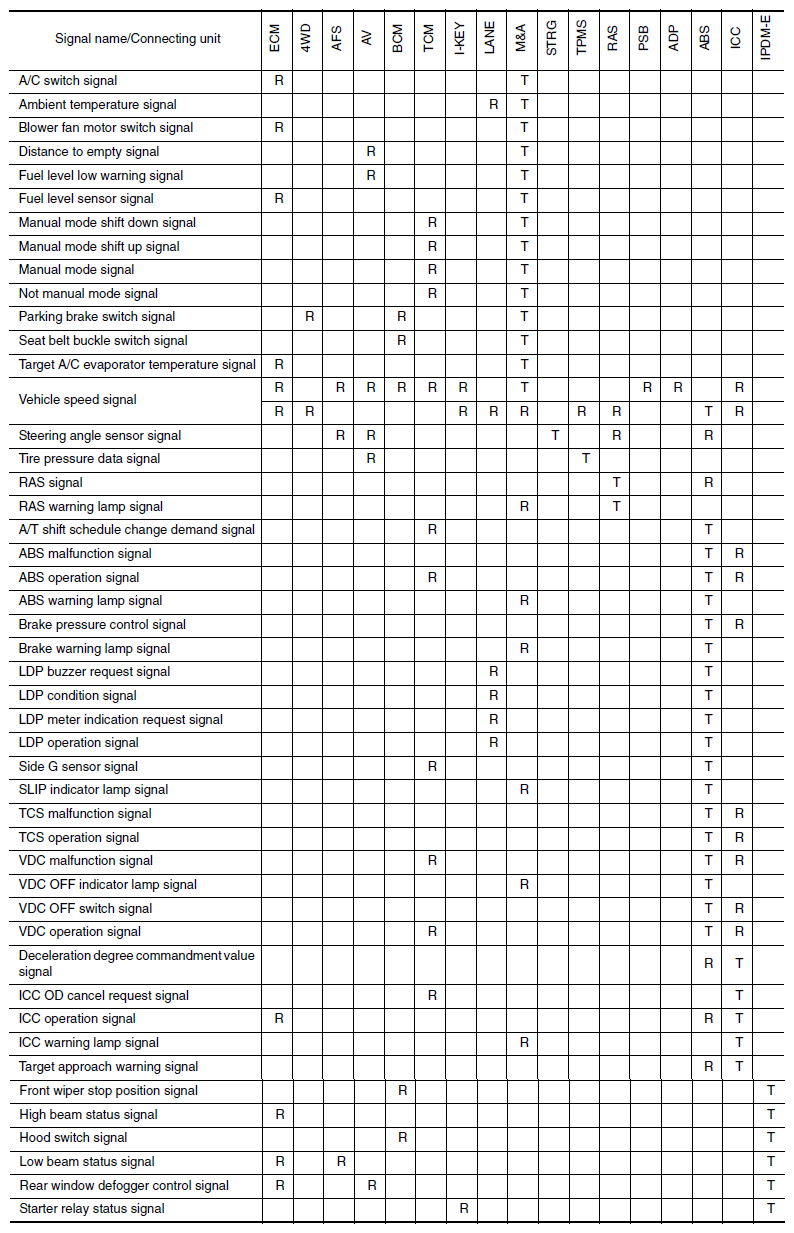

Fig 3: CAN Communication Signal Table (3 Of 3)
G06308409Courtesy of NISSAN MOTOR CO., U.S.A.
