Section 249 (Brake Control System (With VDC))
>>
Removal And Installation
>>
Yaw Rate/Side/DECEL G Sensor
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2011 Nissan Juke. However, it is still accessible from the selected car via links, so may be relevant.

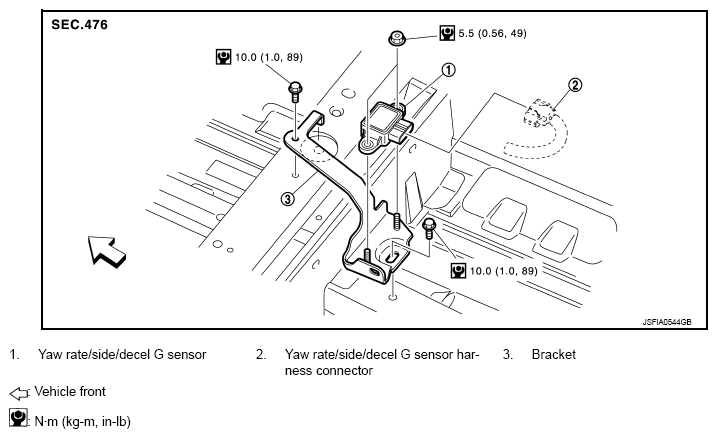

Fig 1: Exploded View Of Yaw Rate/Side/Decel G Sensor With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
