Engine Control System - Introduction (1 Of 2) - G37 Sedan
>>
System Description
>>
Engine Control System
>>
System Diagram
System Diagram

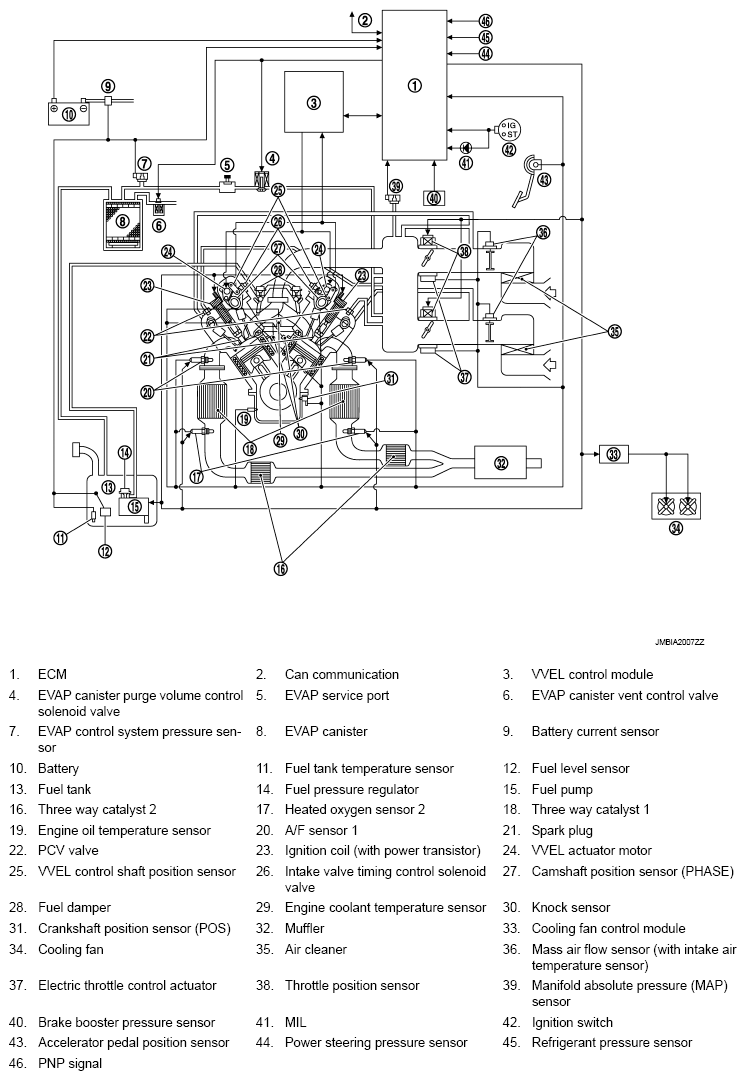

Fig 1: Engine Control - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
