Component Parts Location

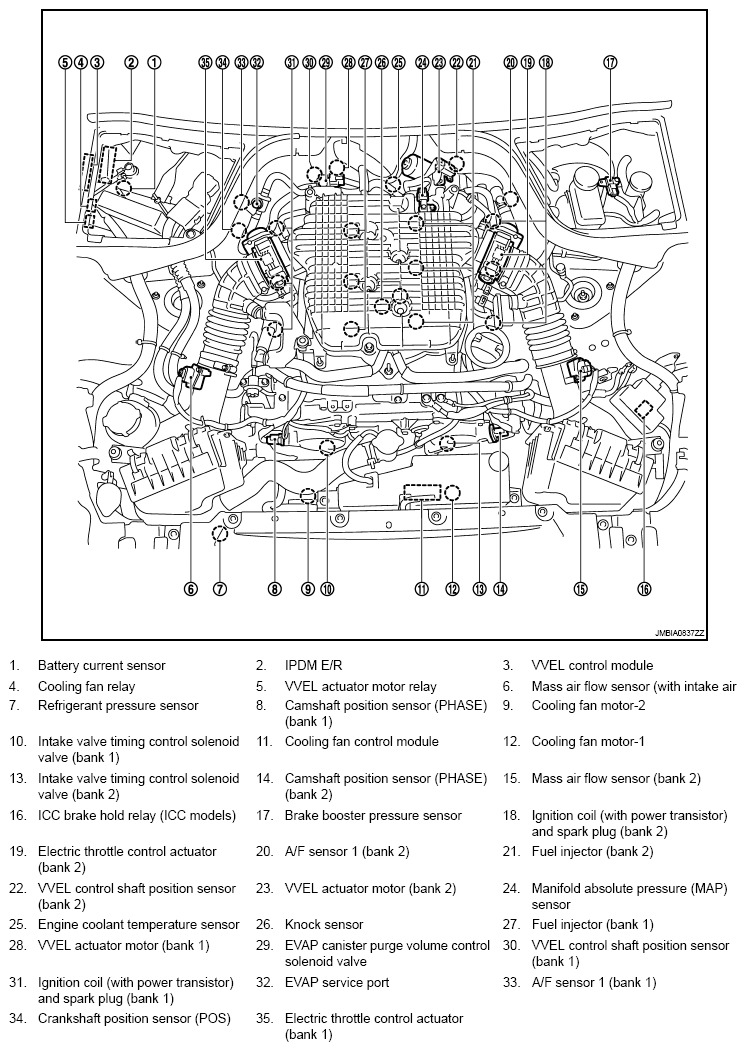

Fig 1: Identifying Engine Control System Component Parts Location (1 Of 21)

G06636315

Courtesy of NISSAN MOTOR CO., U.S.A.

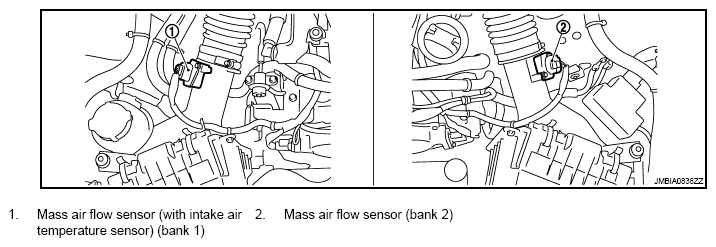

Fig 2: Identifying Engine Control System Component Parts Location (2 Of 21)

G06636316

Courtesy of NISSAN MOTOR CO., U.S.A.

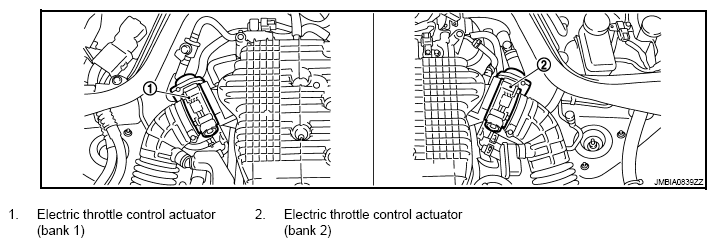

Fig 3: Identifying Engine Control System Component Parts Location (3 Of 21)

G06636317

Courtesy of NISSAN MOTOR CO., U.S.A.

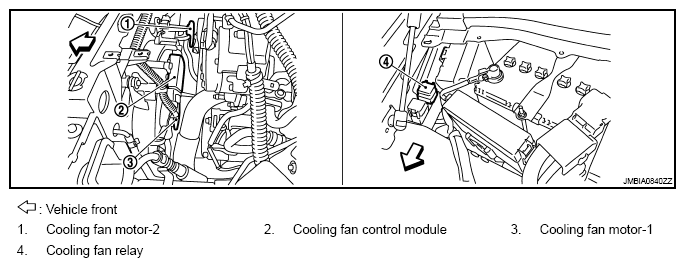

Fig 4: Identifying Engine Control System Component Parts Location (4 Of 21)

G06636318

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Engine Control System Component Parts Location (5 Of 21)

G05216249

Courtesy of NISSAN MOTOR CO., U.S.A.

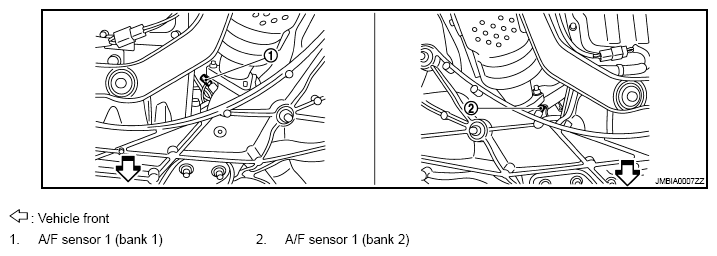

Fig 6: Identifying Engine Control System Component Parts Location (6 Of 21)

G06636320

Courtesy of NISSAN MOTOR CO., U.S.A.

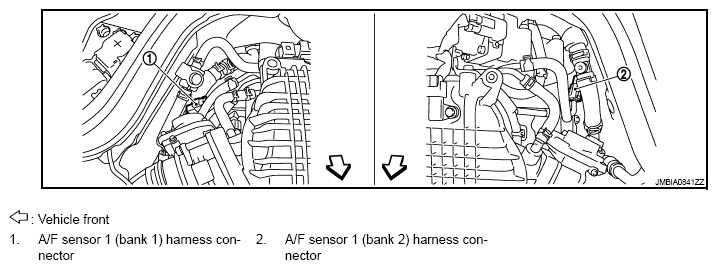

Fig 7: Identifying Engine Control System Component Parts Location (7 Of 21)

G06636321

Courtesy of NISSAN MOTOR CO., U.S.A.

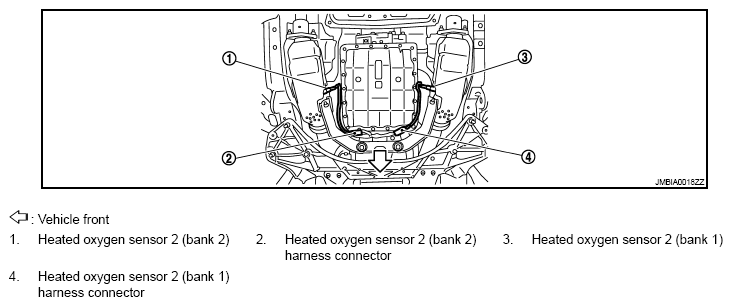

Fig 8: Identifying Engine Control System Component Parts Location (8 Of 21)

G06636322

Courtesy of NISSAN MOTOR CO., U.S.A.

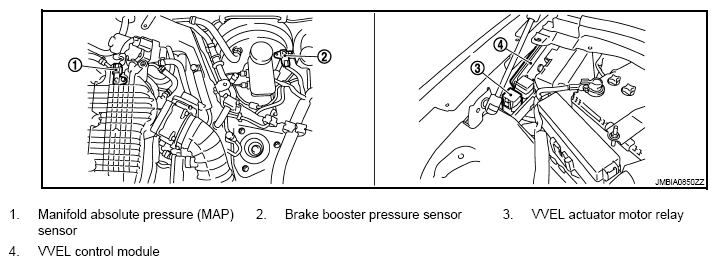

Fig 9: Identifying Engine Control System Component Parts Location (9 Of 21)

G06636323

Courtesy of NISSAN MOTOR CO., U.S.A.

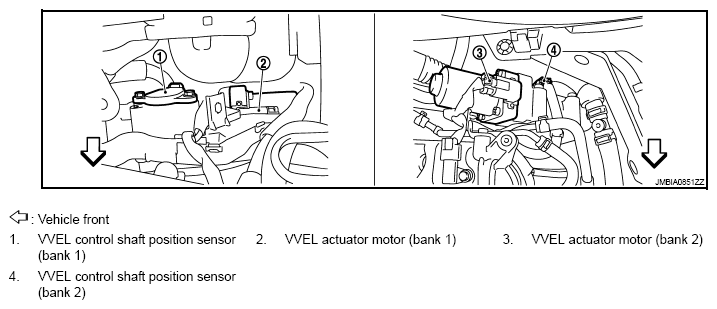

Fig 10: Identifying Engine Control System Component Parts Location (10 Of 21)

G06636324

Courtesy of NISSAN MOTOR CO., U.S.A.

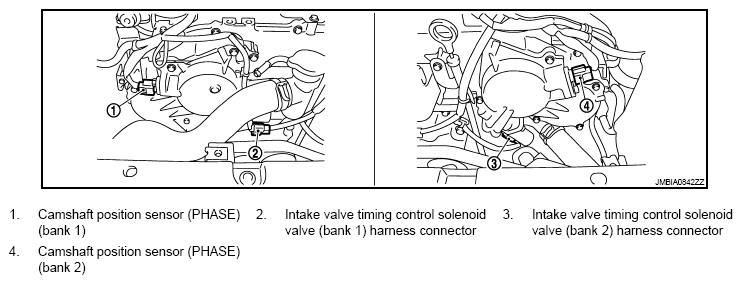

Fig 11: Identifying Engine Control System Component Parts Location (11 Of 21)

G06636325

Courtesy of NISSAN MOTOR CO., U.S.A.

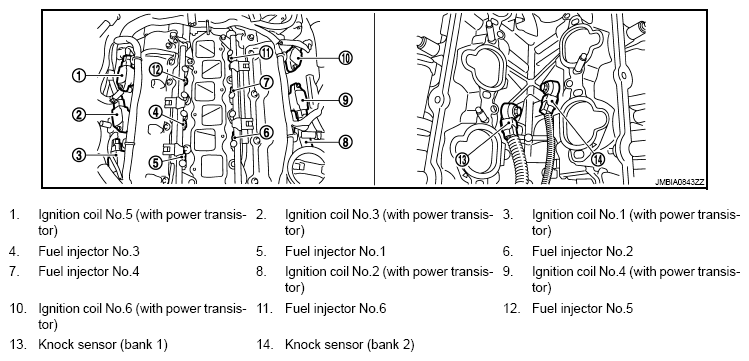

Fig 12: Identifying Engine Control System Component Parts Location (12 Of 21)

G06636326

Courtesy of NISSAN MOTOR CO., U.S.A.

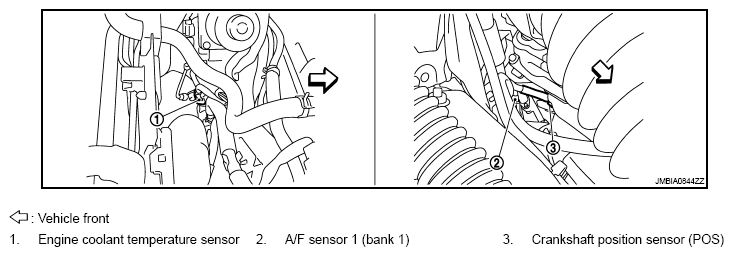

Fig 13: Identifying Engine Control System Component Parts Location (13 Of 21)

G06636327

Courtesy of NISSAN MOTOR CO., U.S.A.

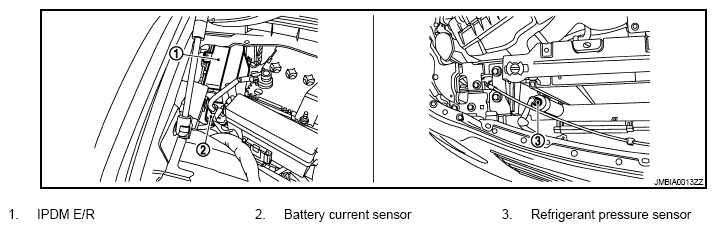

Fig 14: Identifying Engine Control System Component Parts Location (14 Of 21)

G06636328

Courtesy of NISSAN MOTOR CO., U.S.A.

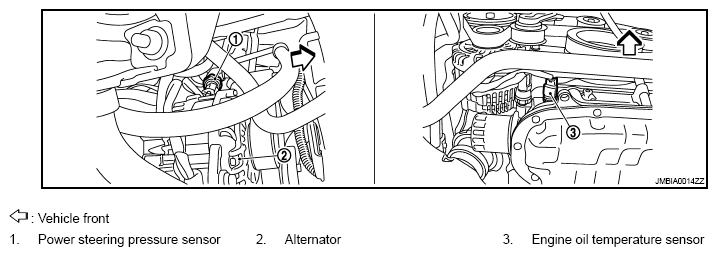

Fig 15: Identifying Engine Control System Component Parts Location (15 Of 21)

G06636329

Courtesy of NISSAN MOTOR CO., U.S.A.

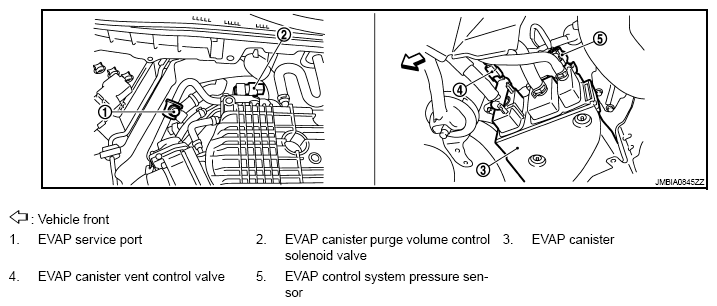

Fig 16: Identifying Engine Control System Component Parts Location (16 Of 21)

G06636330

Courtesy of NISSAN MOTOR CO., U.S.A.

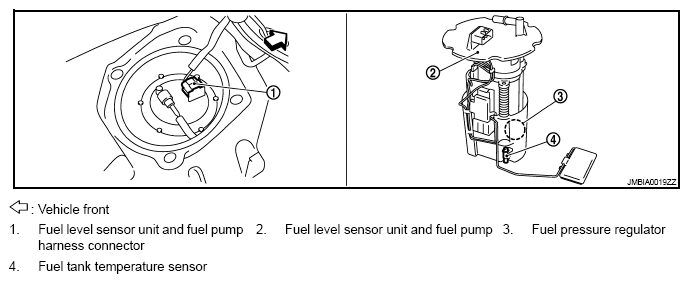

Fig 17: Identifying Engine Control System Component Parts Location (17 Of 21)

G06636331

Courtesy of NISSAN MOTOR CO., U.S.A.

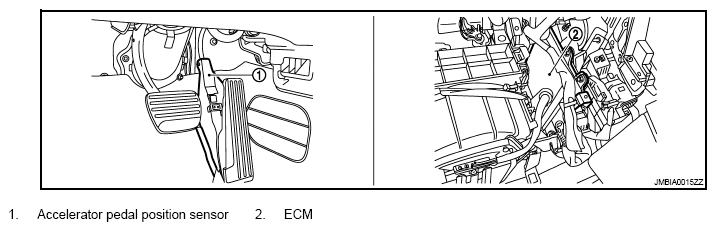

Fig 18: Identifying Engine Control System Component Parts Location (18 Of 21)

G06636332

Courtesy of NISSAN MOTOR CO., U.S.A.

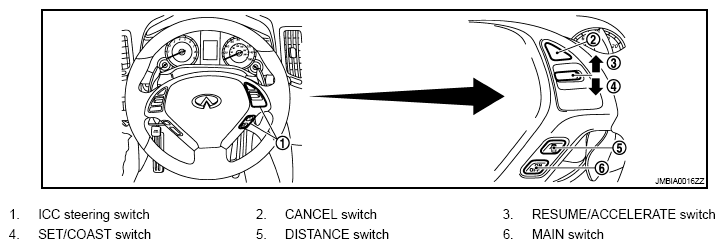

Fig 19: Identifying Engine Control System Component Parts Location (19 Of 21)

G06636333

Courtesy of NISSAN MOTOR CO., U.S.A.

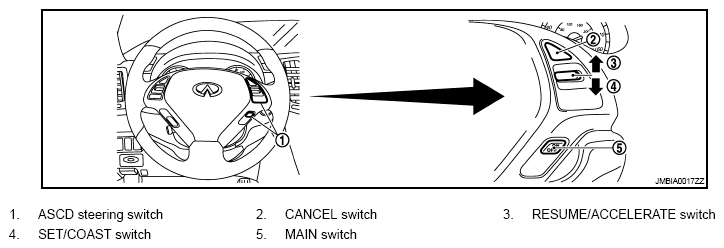

Fig 20: Identifying Engine Control System Component Parts Location (20 Of 21)

G06636334

Courtesy of NISSAN MOTOR CO., U.S.A.

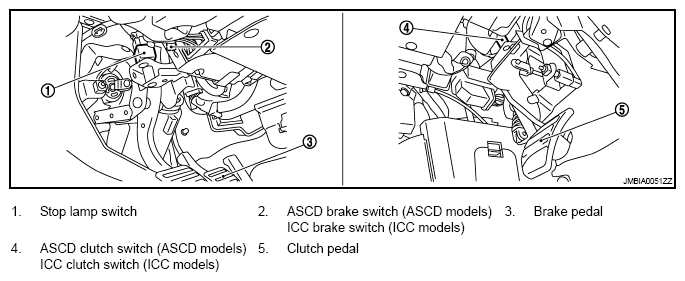

Fig 21: Identifying Engine Control System Component Parts Location (21 Of 21)

G06636335

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 22: Identifying Snow Mode Switch

G06636336

Courtesy of NISSAN MOTOR CO., U.S.A.
