WARNING: This page is about a different car, the 2011 Nissan Juke. However, it is still accessible from the selected car via links, so may be relevant.

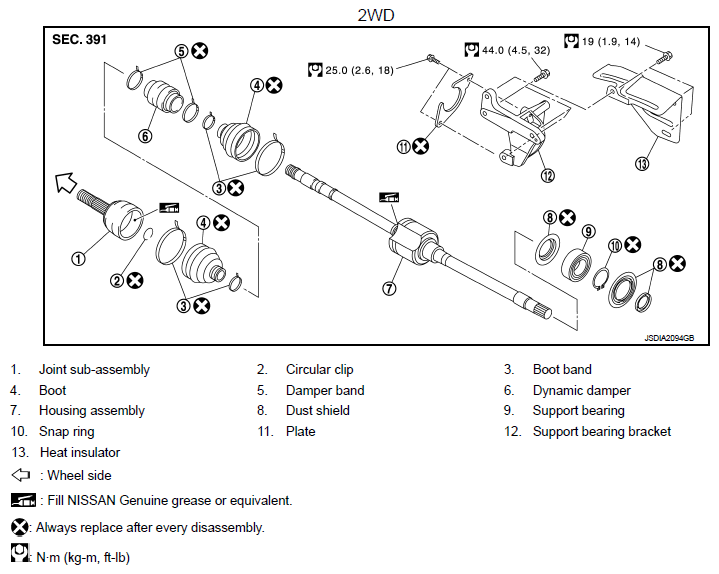

Fig 1: Exploded View Of Front Drive Shaft Boot (2WD) With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

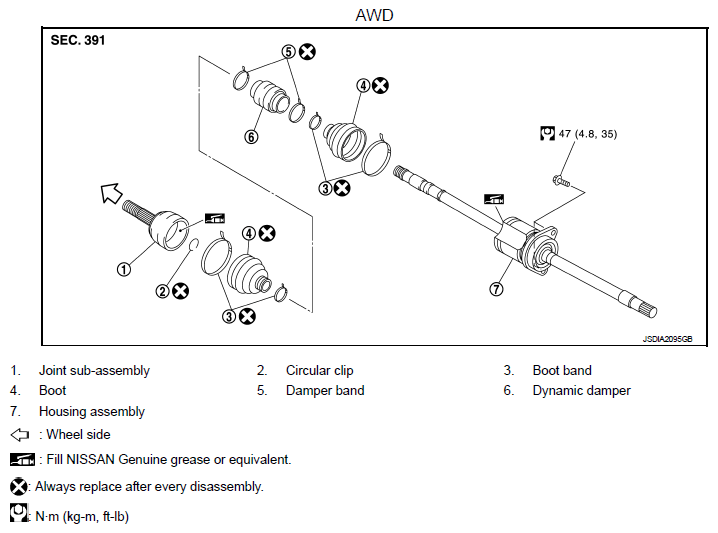

Fig 2: Exploded View Of Front Drive Shaft Boot (AWD) With Torque Specifications
