Section 243 (CVT)
>>
System Description
>>
System
>>
Oil Pressure Control System
>>
OIL PRESSURE CONTROL SYSTEM : System Diagram
OIL PRESSURE CONTROL SYSTEM : System Diagram
WARNING:
This page is about a different car, the 2011 Nissan Juke. However, it is still accessible from the selected car via links, so may be relevant.

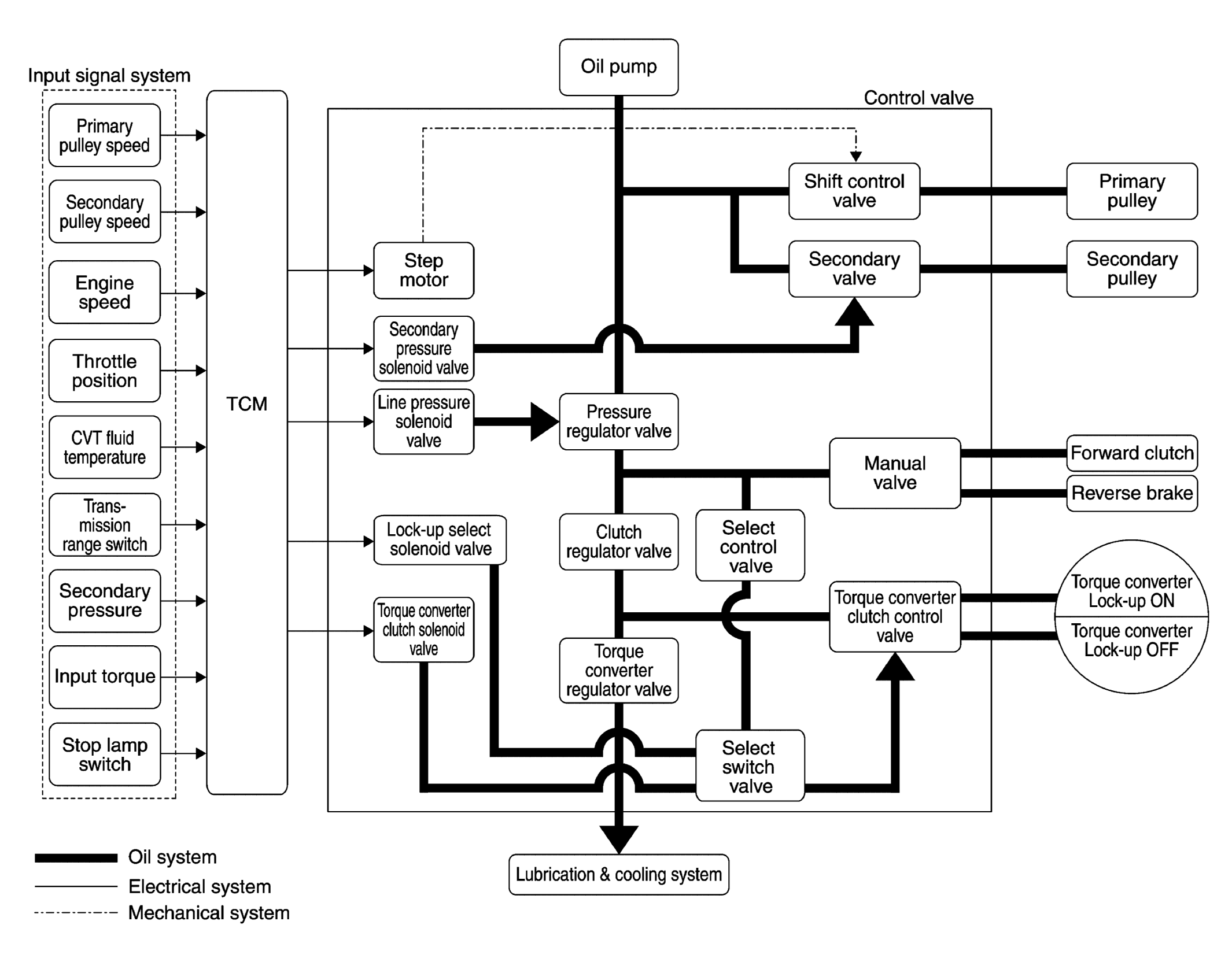

Fig 1: Oil Pressure Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
