CVT CONTROL SYSTEM : Manual Mode Indicator
WARNING: This page is about a different car, the 2011 Nissan Juke. However, it is still accessible from the selected car via links, so may be relevant.

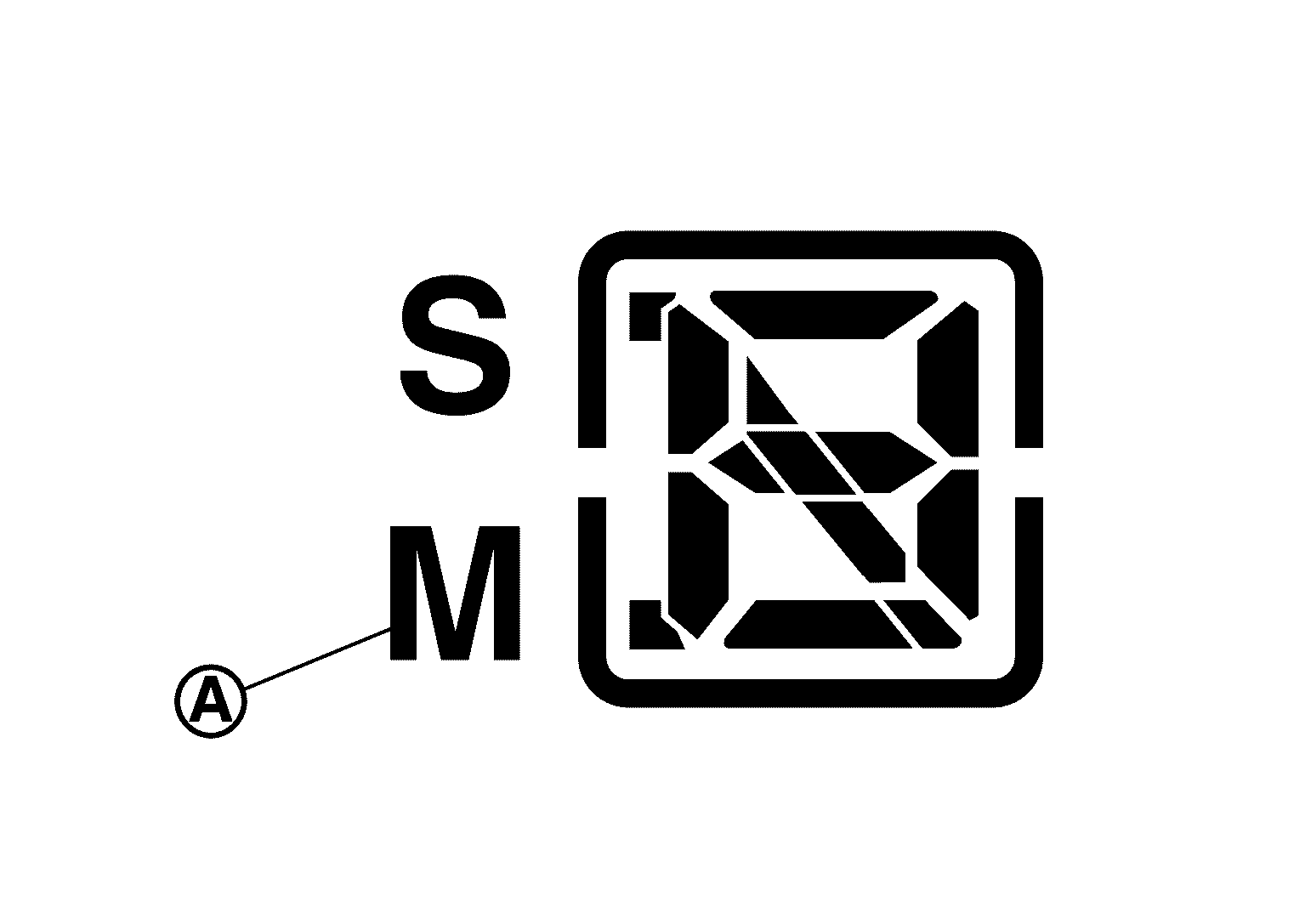

- Manual mode indicator (A) is positioned on the combination meter.
- The manual mode indicator illuminates when the selector lever is operated to the manual shift gate side. It also displays the gear position (M1↔ M6) when the selector lever is operated to the + side or - side. (Operates only during driving.)
- The manual mode indicator turns off when the selector lever is operated to the main shift gate side.MANUAL MODE INDICATOR CONDITIONS
Condition (status) Manual mode indicator Selector lever is operated to the manual shift gate side. Display Selector lever is operated to the + side or - side. M1↔ M6 Selector lever is operated to the main shift gate side. Nothing displayed.
