Assembly (2)

WARNING: This page is about a different car, the 2011 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If the A/T fluid temperature sensor 2 has flaws, replace it with a plug.

Install O-ring to oil pump assembly.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

  Fig 1: Installing O-Ring To Oil Pump Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install bearing race to oil pump assembly.
CAUTION: Apply petroleum jelly to bearing race.

Fig 2: Identifying Bearing Race In Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pump assembly in transmission case.
CAUTION: Apply ATF to oil pump bearing.

Fig 3: Installing Oil Pump Assembly In Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply recommended sealant (Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to oil pump assembly as shown in the figure.
CAUTION: Completely remove all moisture, oil, old sealant and any foreign material from the oil pump bolts and oil pump bolt mating surfaces.

Fig 4: Applying Recommended Sealant To Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten oil pump bolts to specified torque.
Oil pump bolts : 48 N.m (4.9 kg-m, 35 ft-lb)

CAUTION: Apply ATF to oil pump bushing.

Fig 5: Locating Oil Pump Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to input clutch assembly.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

  Fig 6: Locating O-Ring On Input Clutch Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install converter housing to transmission case and tighten bolts (←) to specified torque.
Converter housing bolt : 52 N.m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt (A) : 61 N.m (6.2 kg-m, 45 ft-lb)

CAUTION: Do not reuse self-sealing bolt.

Fig 7: Locating Converter Housing Bolt And Self-Sealing Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.

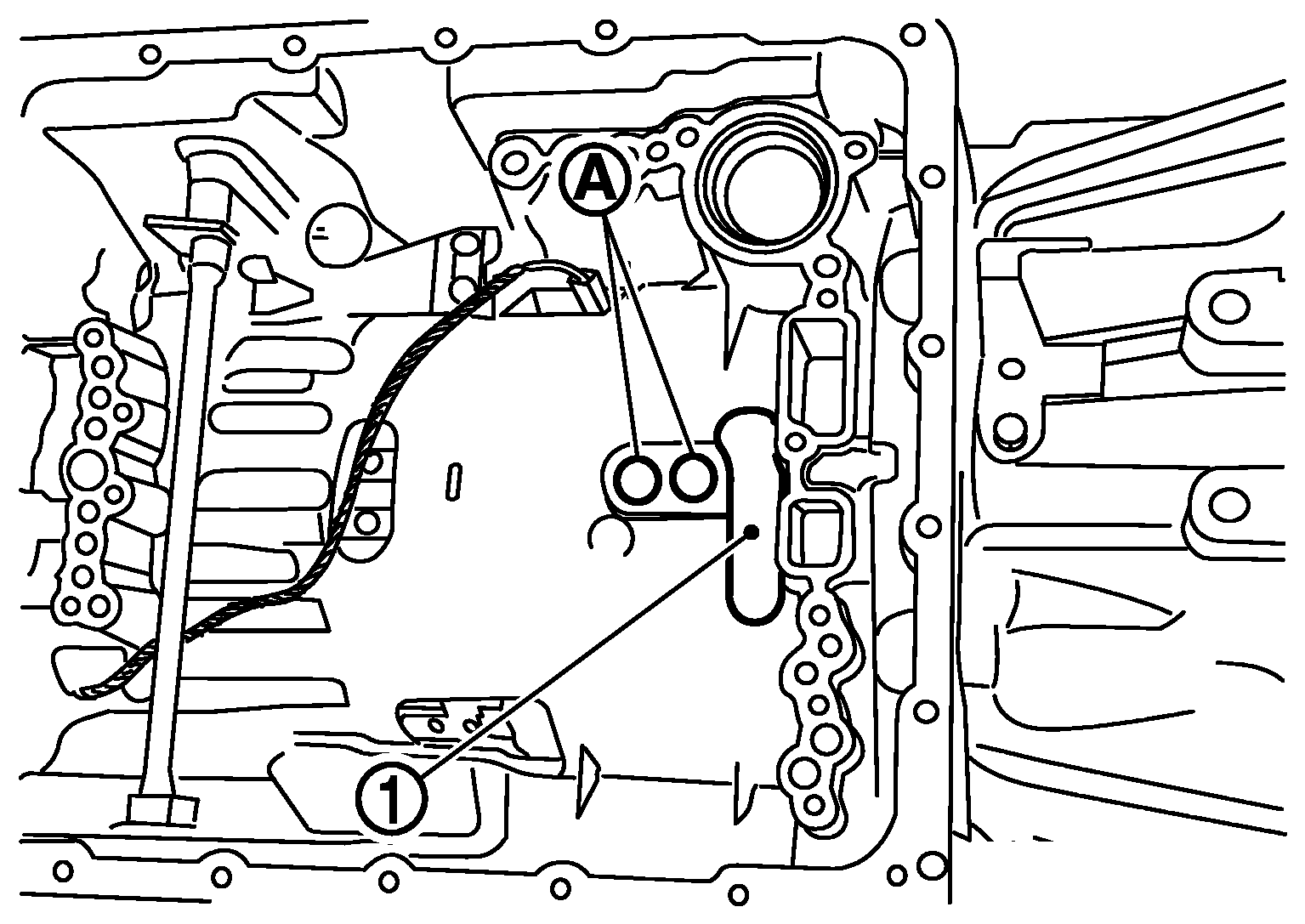

Make sure that brake band (1) does not close input speed sensor hole (A).

Fig 8: Locating Brake Band And Input Speed Sensor Hole
Courtesy of NISSAN MOTOR CO., U.S.A.

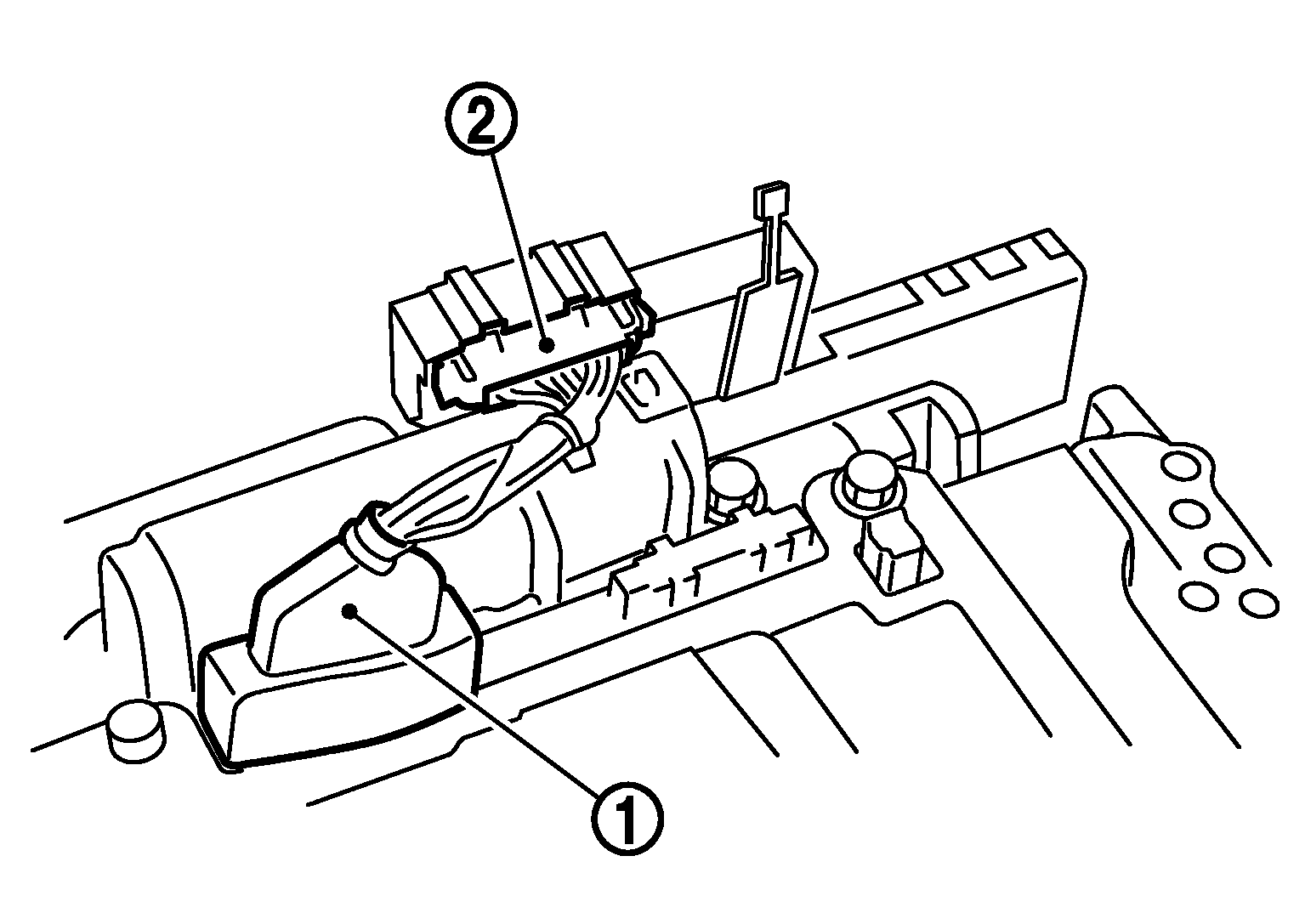

Connect TCM connector (1) and transmission range switch connector (2).

Fig 9: Identifying TCM Connector And Transmission Range Switch Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T assembly harness connector to control valve with TCM.

Fig 10: Installing A/T Assembly Harness Connector To Control Valve With TCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect TCM connectors.

Fig 11: Identifying TCM Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to A/T assembly harness connector.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

  Fig 12: Identifying O-Ring And A/T Assembly Harness Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install new O-ring (1) in plug (2).
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
- O-ring should be free of contamination.
Fig 13: Identifying O-Ring And Plug
Courtesy of NISSAN MOTOR CO., U.S.A.
Install plug (2) to bracket (1).

Fig 14: Identifying Plug And Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Install plug (1) [with bracket (2)] to control valve with TCM and tighten bolt ( ←) to specified torque.
Bracket bolt : 7.9 N.m (0.81 kg-m, 70 in-lb)

CAUTION: Adjust bolt hole of bracket to bolt hole of control valve.

Fig 15: Identifying Plug And Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.

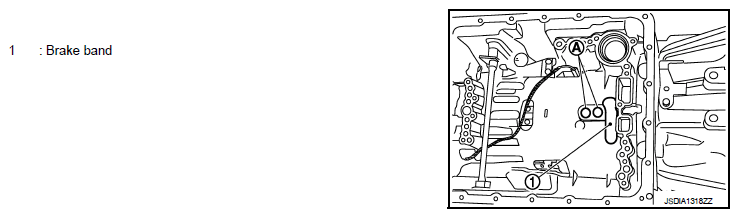

Install control valve with TCM in transmission case.
1. : Brake band
Fig 16: Identifying Brake Band And Input Speed Sensor Hole
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Make sure that input speed sensor is securely installed into input speed sensor hole (A) .
- Hang down output speed sensor harness toward outside so as not to disturb installation of control valve with TCM.
- Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.
- Assemble it so that manual valve cutout is engaged with manual plate projection.
Fig 17: Identifying Manual Valve And Manual Plate
Courtesy of NISSAN MOTOR CO., U.S.A.

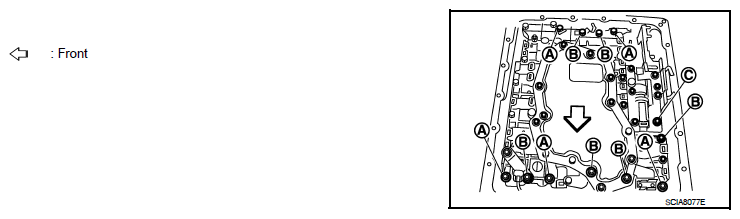

Install bolts (A), (B) and (C) to control valve with TCM.

←:Front

BOLTS REFERENCE CHART

Bolt symbol	Length mm (in)	Number of bolts
A	42 (1.65)	5
B	55 (2.17)	6
C	40 (1.57)	1

Fig 18: Identifying Bolts (A), (B) And (C) Of Control Valve With TCM

Courtesy of NISSAN MOTOR CO., U.S.A.

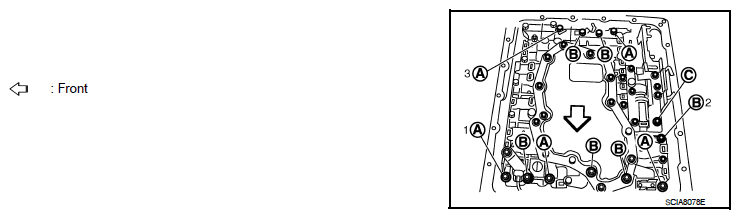

Tighten bolt (A), (B) and (C) temporarily to prevent dislocation. After that tighten them in order (A → B → C), and then tighten other bolts.

←:Front

Fig 19: Identifying Control Valve Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

BOLTS REFERENCE CHART

Bolt symbol	A	B	C
Number of bolts	5	6	1
Length mm (in)	42 (1.65)	55 (2.17)	40 (1.57)
Tightening torque N.m (km-g, in-lb)	7.9 (0.81, 70)		With ATF applied
Tightening torque N.m (km-g, in-lb)	7.9 (0.81, 70)		7.9 (0.81, 70)

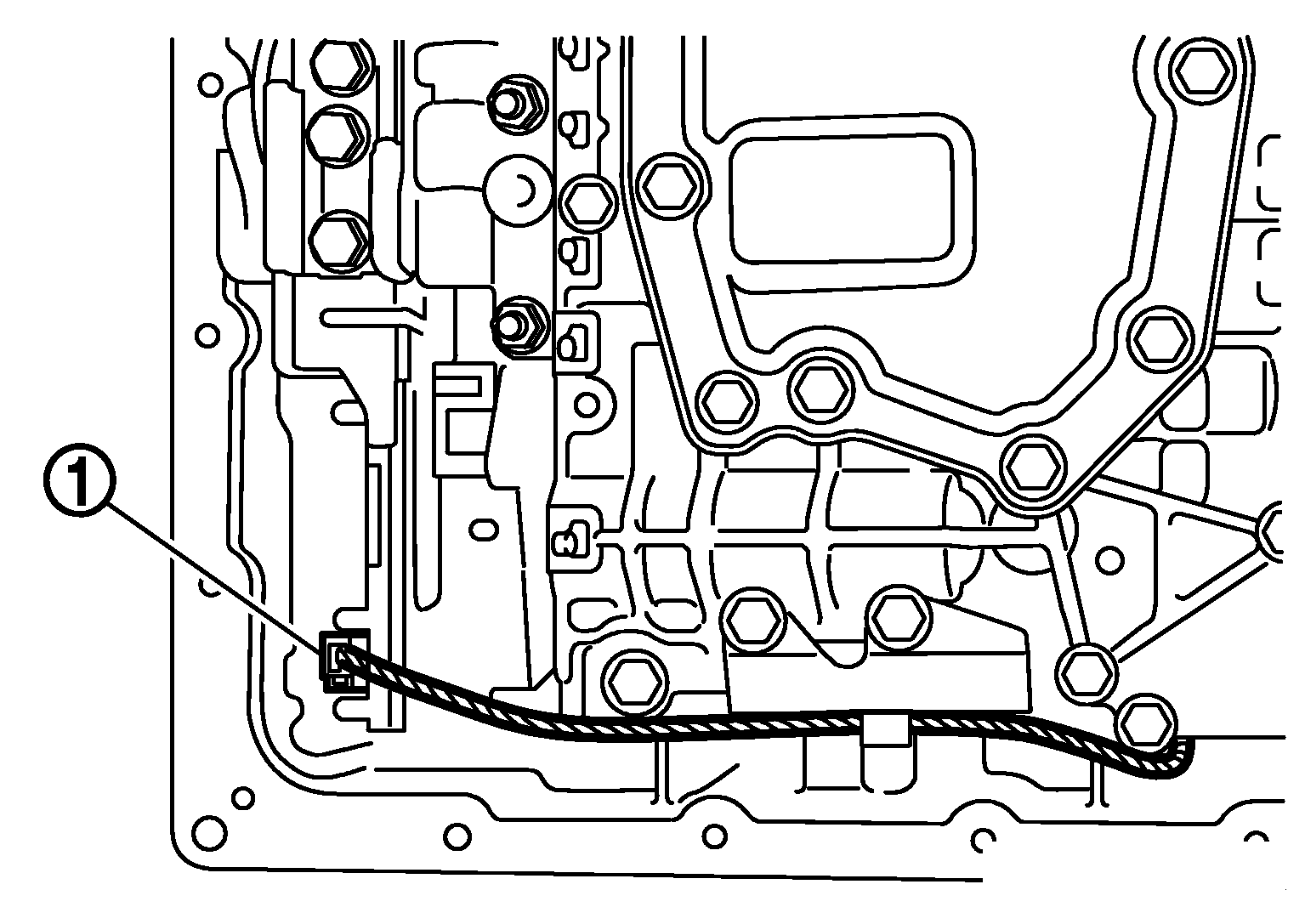

Connect output speed sensor connector (1).

Fig 20: Identifying Output Speed Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

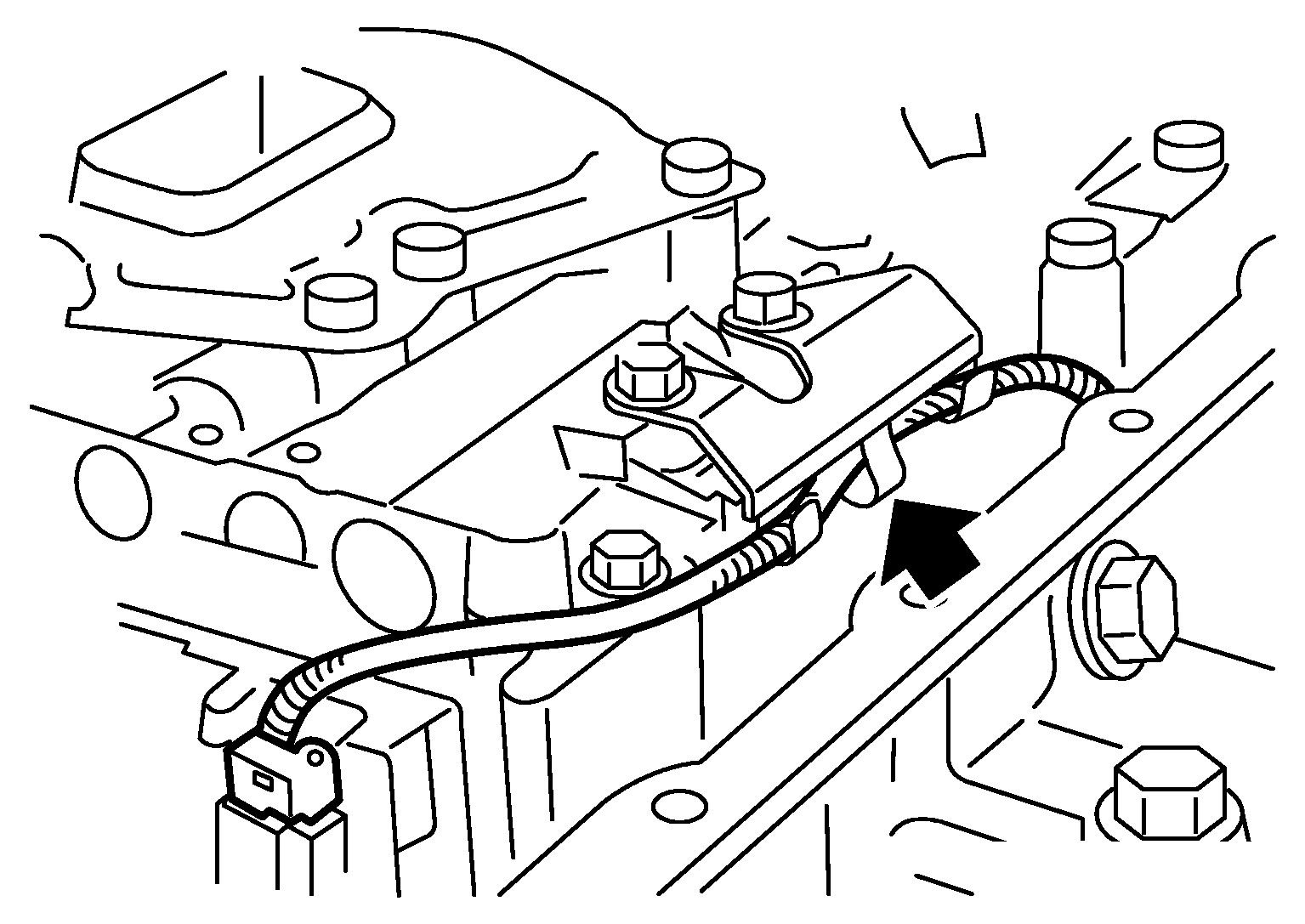

Securely fasten output speed sensor harness with terminal clip
(←)

Fig 21: Locating Output Speed Sensor Harness With Terminal Clip
Courtesy of NISSAN MOTOR CO., U.S.A.
Pull down A/T assembly harness connector.
CAUTION: Do not damage connector.

Fig 22: Pulling Down A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring to A/T assembly harness connector.

Fig 23: Installing Snap Ring To A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install magnets in oil pan.

Fig 24: Identifying Magnets In Oil Pan
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pan to transmission case. Refer to".OIL PAN
Install torque converter.
1. Pour ATF into torque converter.
  NOTE:
  - Approximately 2 liters (2-1/8 US qt, 1-3/4 Imp qt) of fluid is required for a new torque converter.
  - When reusing old torque converter, add the same amount of fluid as was drained.

    Fig 25: Pouring ATF Into Torque Converter
    Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install torque converter while aligning notches of torque converter with notches of oil pump.
  CAUTION: Install torque converter while rotating it.

  Fig 26: Installing Torque Converter While Aligning Notches Of Torque Converter With Notches Of Oil Pump
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Measure distance "A" to make sure that torque converter is in proper position.
  Distance "A" : 24.0 mm (0.94 in)

  Fig 27: Measuring Distance A To Torque Converter
  Courtesy of NISSAN MOTOR CO., U.S.A.
