Component Parts Location

WARNING: This page is about a different car, the 2011 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

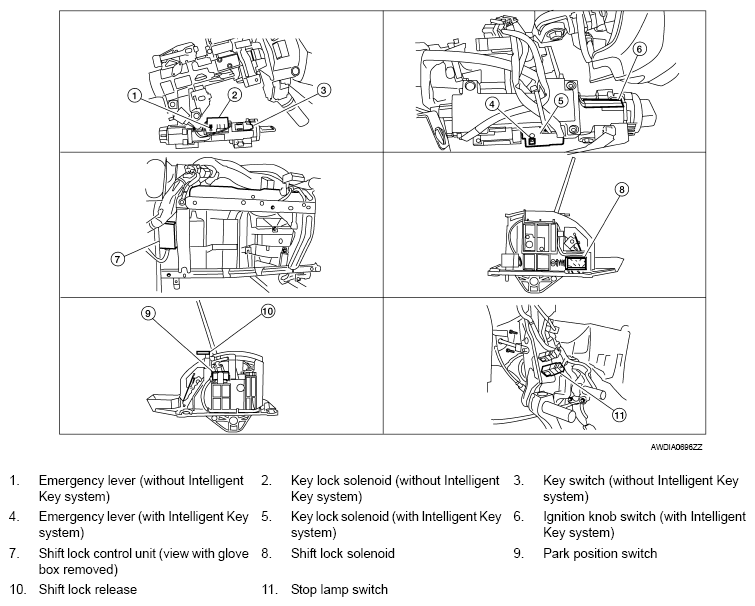

Fig 1: Identifying A/T Shift Lock System Component Parts Location
G06577780Courtesy of NISSAN MOTOR CO., U.S.A.
