Removal And Installation Of Control Valve And TCM: Installation

WARNING: This page is about a different car, the 2011 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

After completing installation, check A/T fluid leakage and fluid level. Refer to CHECKING THE A/T FLUID (ATF)

Connect TCM connector (1) and transmission range switch connector (2).

Fig 1: Identifying TCM Connector And Transmission Range Switch Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T assembly harness connector to control valve with TCM.

Fig 2: Installing A/T Assembly Harness Connector To Control Valve With TCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect TCM connector.

Fig 3: Identifying TCM Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install new O-ring in A/T assembly harness connector.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Fig 4: Identifying O-Ring And A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install new O-ring (1) in plug (2).
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
- O-ring should be free of contamination.
Fig 5: Identifying O-Ring And Plug
Courtesy of NISSAN MOTOR CO., U.S.A.
Install plug (2) to bracket(1).

Fig 6: Installing A/T Fluid Temperature Sensor 2 To Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Install plug (1) [with bracket (2)] to control valve with TCM.
←:Bolt

CAUTION:
Adjust bolt hole of bracket to bolt hole of control valve with TCM.

Fig 7: Installing Plug To Control Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
Install bolts (A), (B) and (C) in control valve with TCM.
CAUTION:
- Make sure that input speed sensor is securely installed into input speed sensor hole (A).
- Hang down output speed sensor harness toward outside so as not to disturb installation of control valve with TCM.
- Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.
- Assemble it so that manual valve cutout is engaged with manual plate projection.

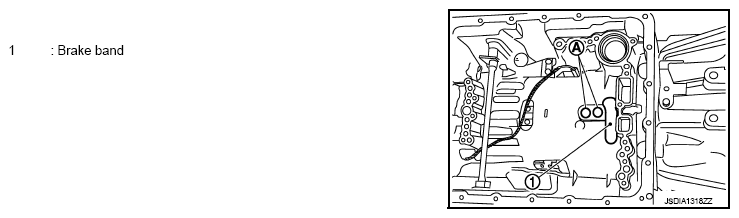

  Fig 8: Identifying Brake Band And Input Speed Sensor Hole
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 9: Installing Manual Valve
  Courtesy of NISSAN MOTOR CO., U.S.A.

Install bolts (A), (B) and (C) in control valve with TCM.

←:Front

BOLTS REFERENCE CHART

Bolt symbol	Length mm (in)	Number of bolts
A	42 (1.65)	5
B	55 (2.17)	6
C	40 (1.57)	1

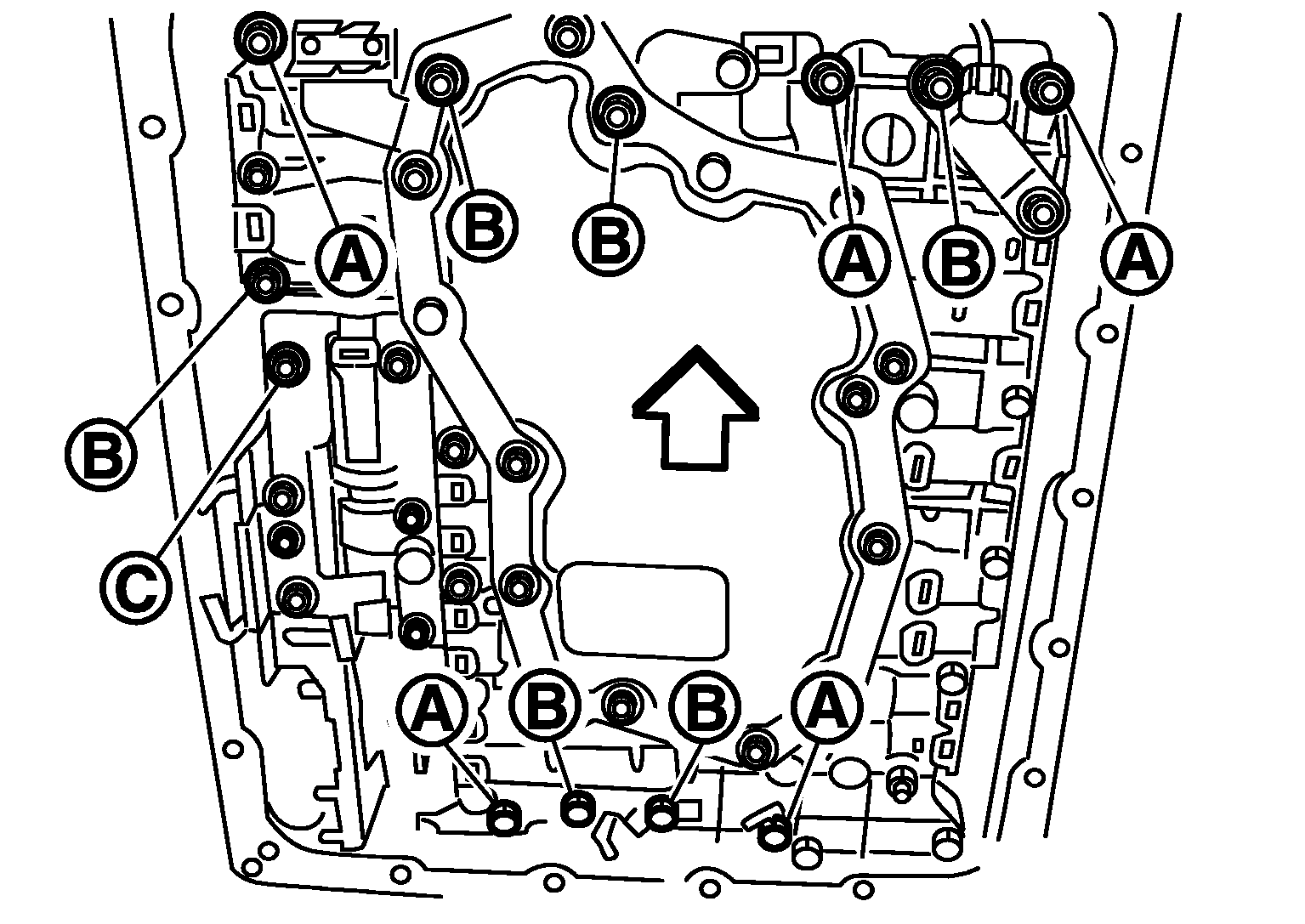

Fig 10: Identifying Bolts For Control Valve With TCM

Courtesy of NISSAN MOTOR CO., U.S.A.

Tighten bolt (1), (2) and (3) temporarily to prevent dislocation. After that tighten them in order (1 →2 → 3). Then tighten other bolts.

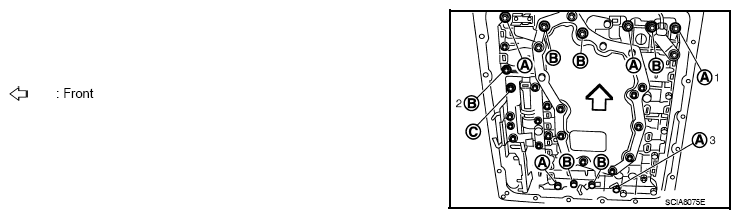

Fig 11: Identifying Control Valve Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

Tighten control valve with TCM bolts to the specified torque.

BOLTS REFERENCE CHART

Bolt symbol	A	B	C
Number of bolts	5	6	1
Length mm (in)	42 (1.65)	55 (2.17)	40 (1.57)
Tightening torque N.m (km-g, in-lb)	7.9 (0.81, 70)		With ATF applied
Tightening torque N.m (km-g, in-lb)	7.9 (0.81, 70)		7.9 (0.81, 70)

Connect output speed sensor connector (1).

Fig 12: Identifying Output Speed Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Securely fasten output speed sensor (1) harness with terminal clip (←).

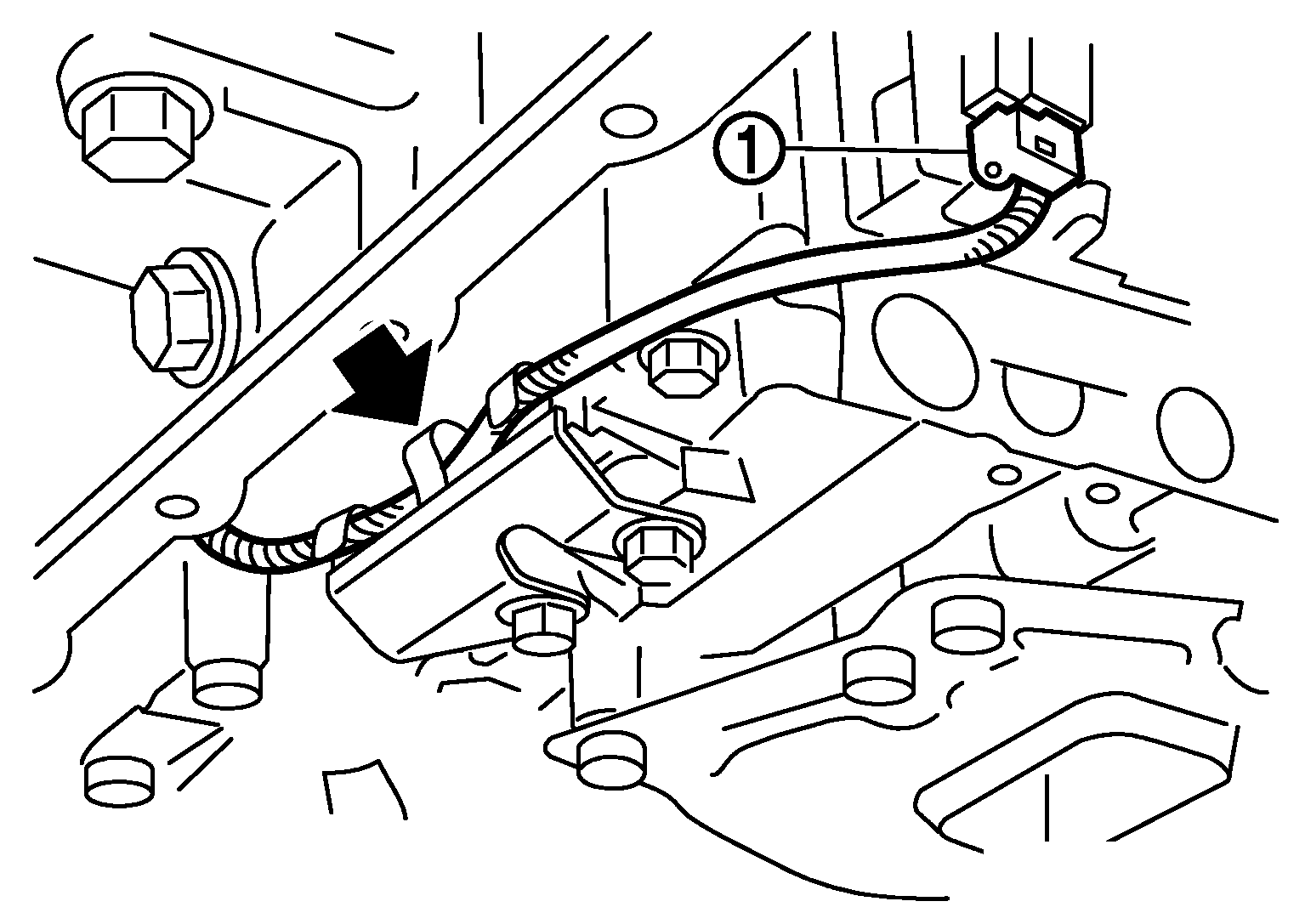

Fig 13: Locating Terminal Clip Of Output Speed Sensor Harness
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pan to transmission case. Refer to "OIL PAN ".
Pull up A/T assembly harness connector.
CAUTION: Do not damage connector.

Fig 14: Pulling Up A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring to A/T assembly harness connector.
Connect A/T assembly harness connector.
Connect the negative battery terminal.
Refill the A/T with fluid and check the fluid level and for fluid leakage. Refer to "CHECKING THE A/T FLUID (ATF) ".

Fig 15: Installing Snap Ring To A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
