Removal and Installation: Notes

WARNING: This page is about a different car, the 2010 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

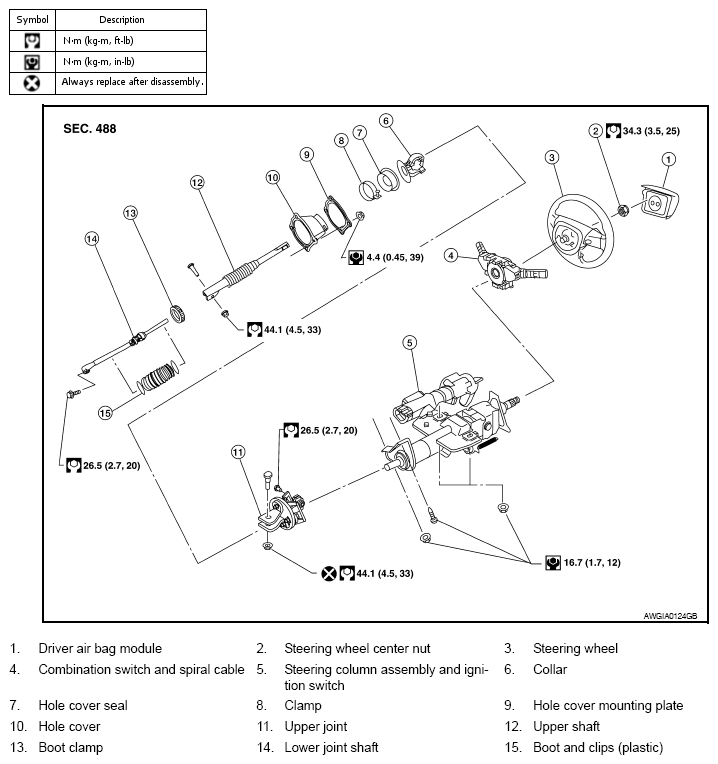

Fig 1: Steering Column Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Do not exert any axial load or impact to the steering column.
Do not move the steering gear while the steering column assembly is removed.
Any time the ignition switch has been removed and installed, the keys must be re-registered in the BCM. Refer to CONSULT-III Operation Manual IVIS/NVIS.
