SRT Service Procedure

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating "INCMP", review the flowchart diagnostic sequence below.

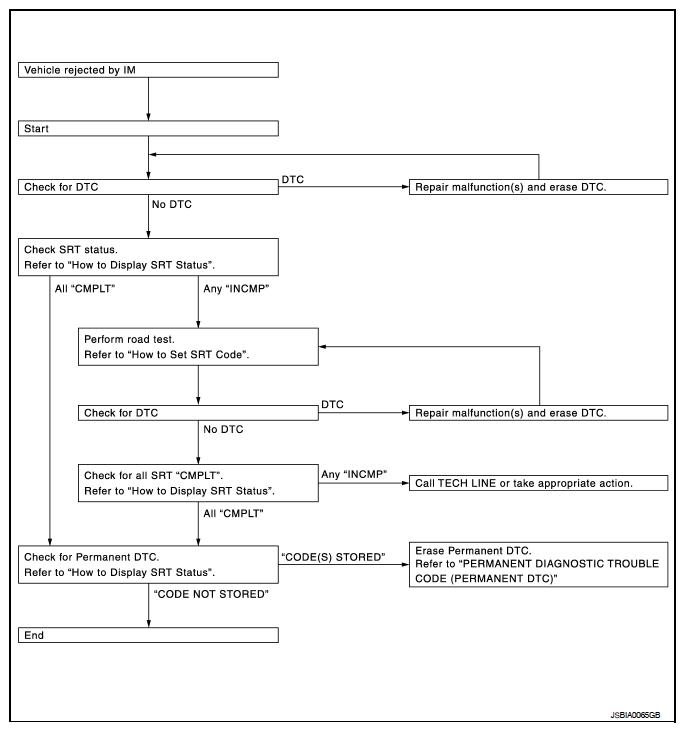

Fig 1: SRT Service Procedure Flow Chart
G06537568Courtesy of NISSAN NORTH AMERICA, INC.
