Charging System -- G37 Convertible
>>
Removal And Installation
>>
Alternator
>>
Exploded View
>>
Removal
Exploded View: Removal

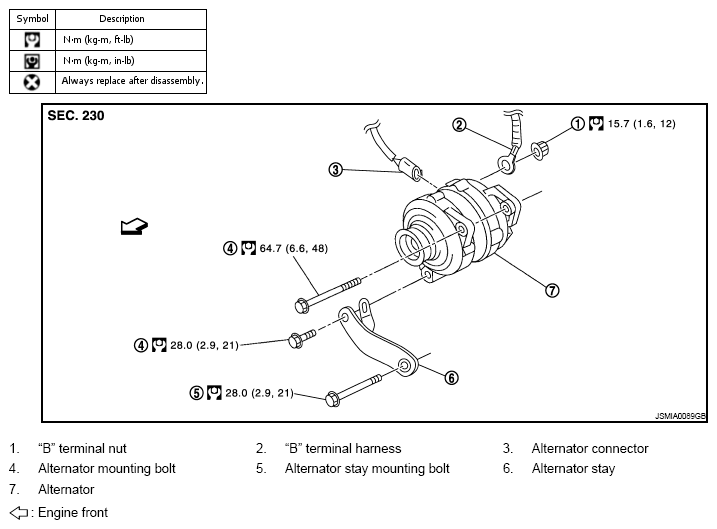

Fig 1: Alternator Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
