VK50VE: Exploded View
VK50VE: Exploded View

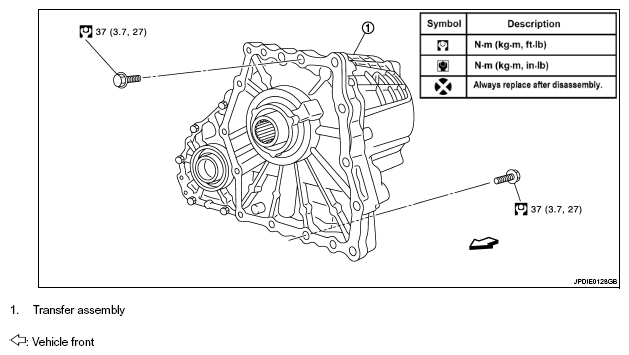

Fig 1: Transfer Assembly With Mounting Bolts Torque Specifications - VK50VE
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols above.
