Exploded View
>>
Stabilizer Clamp Fixing Method: Nut
Stabilizer Clamp Fixing Method: Nut

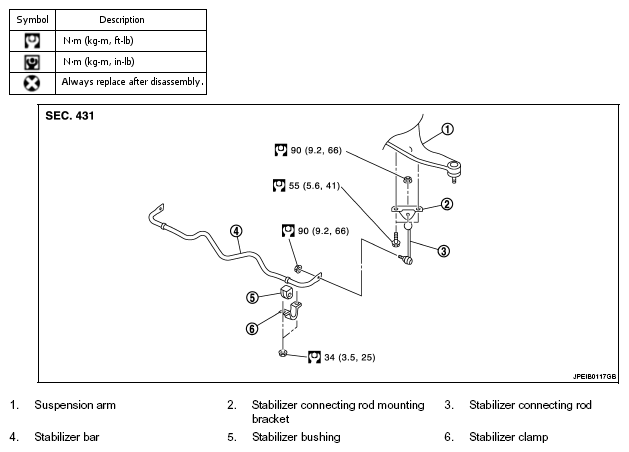

Fig 1: Exploded View Of Rear Stabilizer With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols in the graphic.
