Rear Lower Link & Coil Spring
>>
Exploded View
>>
Without RAS
Without RAS

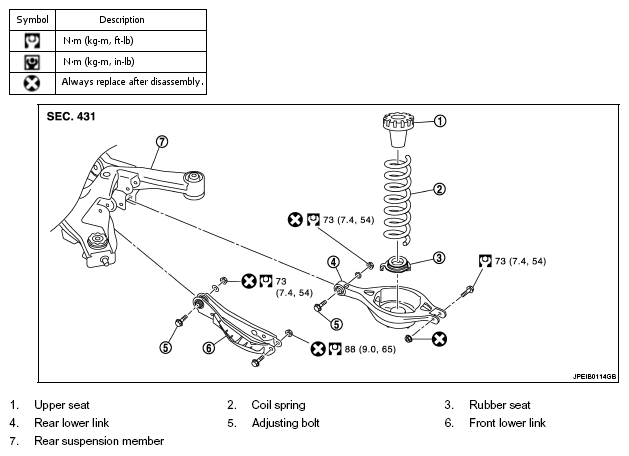

Fig 1: Exploded View Of Rear Lower Link & Coil Spring - Without RAS With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols in the graphic.
