Exploded View
Exploded View

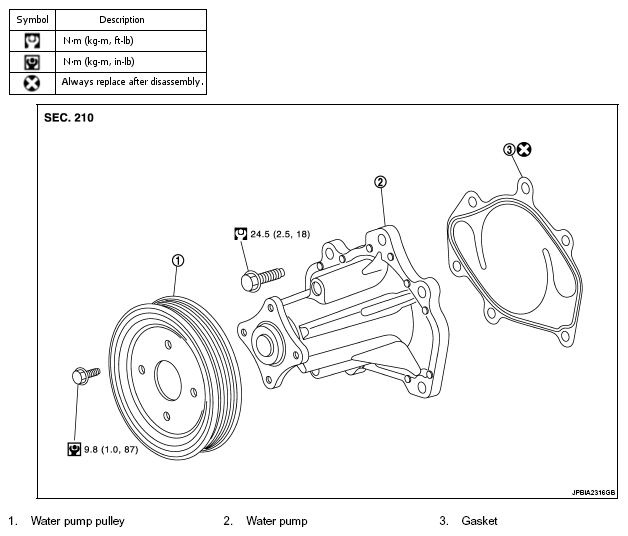

Fig 1: Water Pump Pulley, Water Pump And Gasket With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols in the graphic.
