VQ35HR: Exploded View: Disassembly

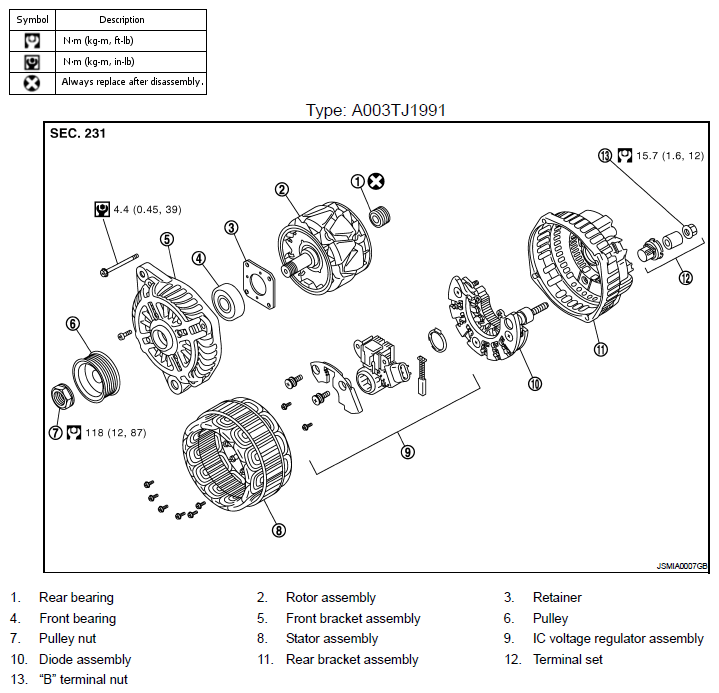

Fig 1: Exploded View Of Alternator - VQ35HR (Type: A003TJ1991) With Torque Specifications
G05983078Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols in the graphic.
