VK50VE : Exploded View: Disassembly

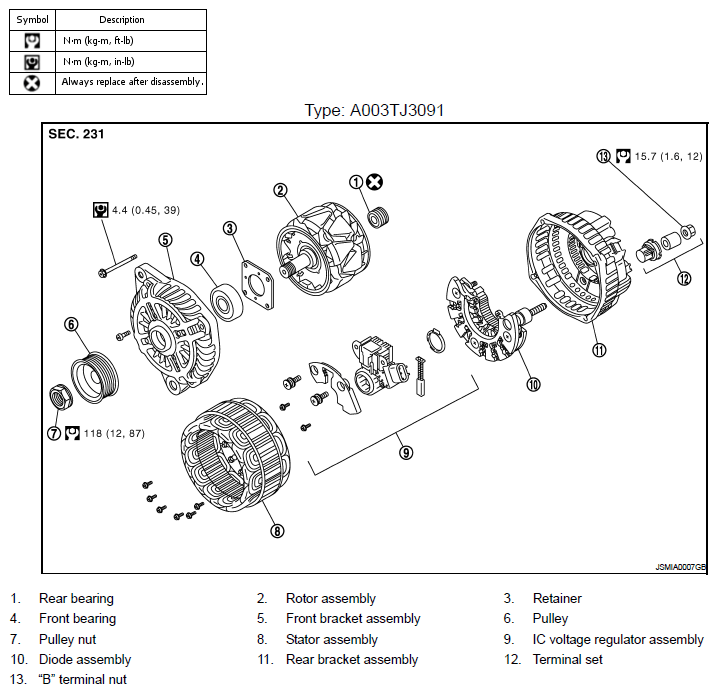

Fig 1: Exploded View Of Alternator - VK50VE (Type: A003TJ3091) With Torque Specifications
G05983086Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols in the graphic.
