Component Parts Location

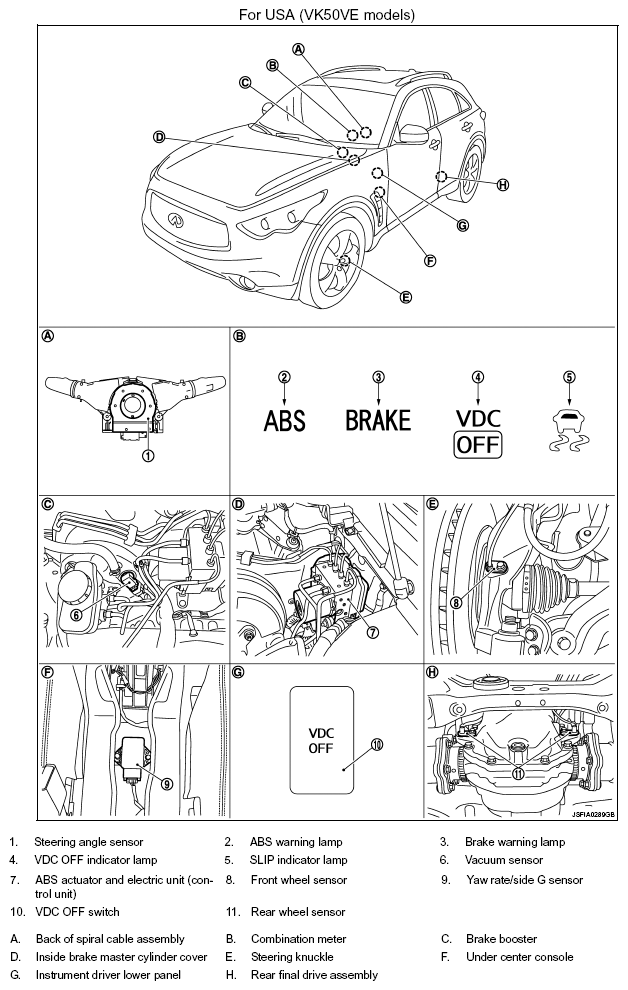

Fig 1: Identifying VDC Component Parts Location (USA - VK50VE Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

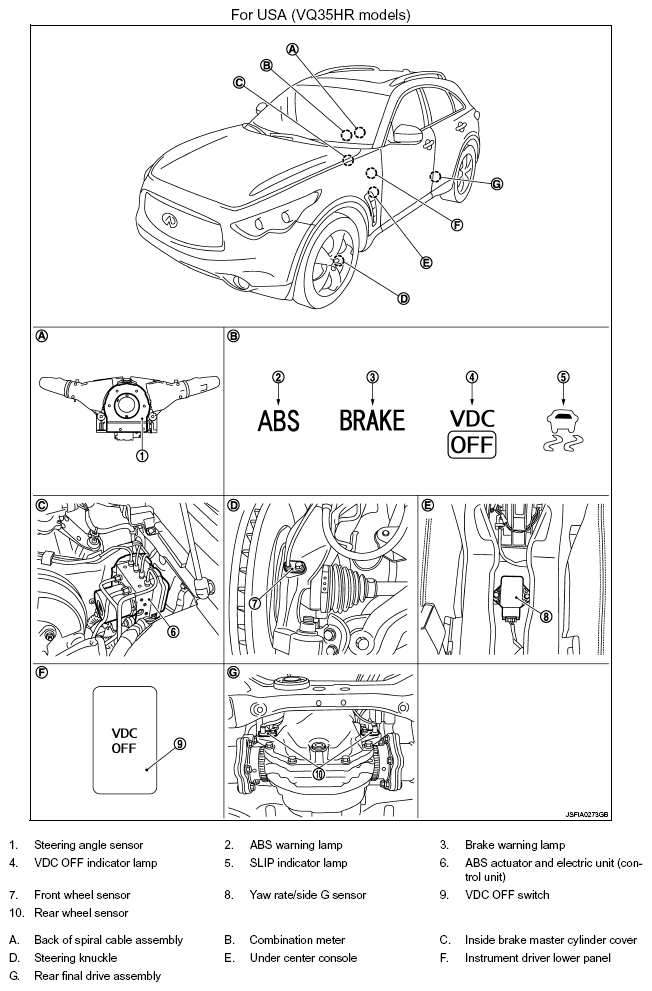

Fig 2: Identifying VDC Component Parts Location (USA - VQ35HR Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying VDC Component Parts Location (Except USA - VK50VE Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

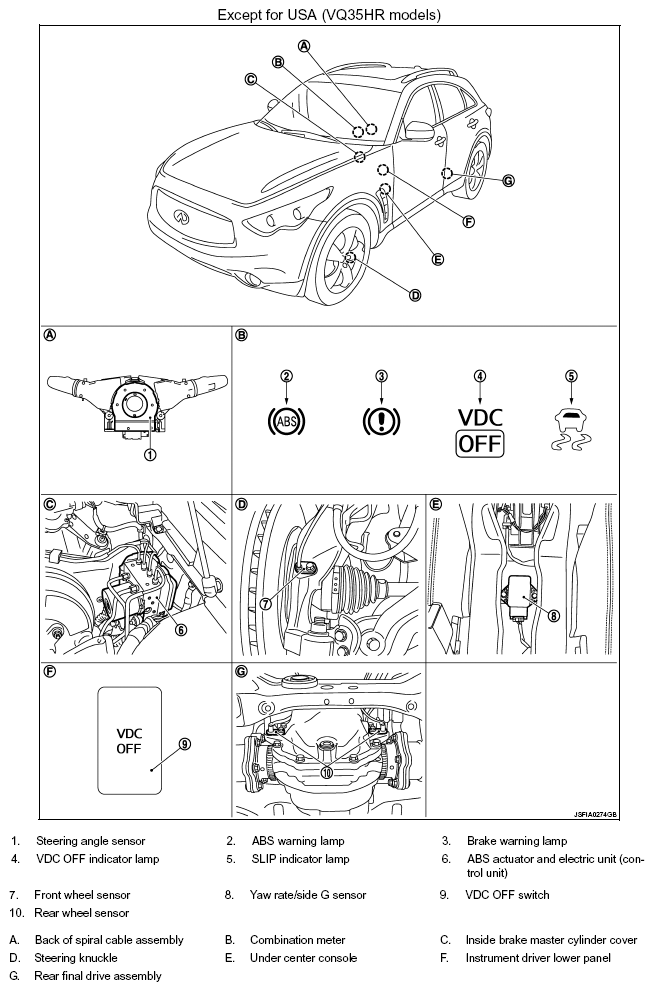

Fig 4: Identifying VDC Component Parts Location (Except USA - VQ35HR Models)

Courtesy of NISSAN MOTOR CO., U.S.A.
