Removal and Installation: Removal

  1. Remove the front door glass. Refer to REMOVAL AND INSTALLATION .
  2. Disconnect the power window motor harness connector (1) and remove the bolts from the module assembly (2).

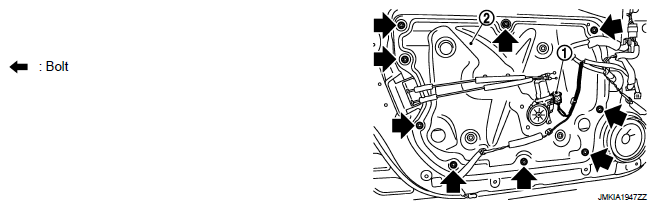

    Fig 1: Locating Front Door Glass Bolts
    G05982153Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the module assembly (1) from the door panel (2) and then remove the harnesses fixing clips with pliers as shown below.

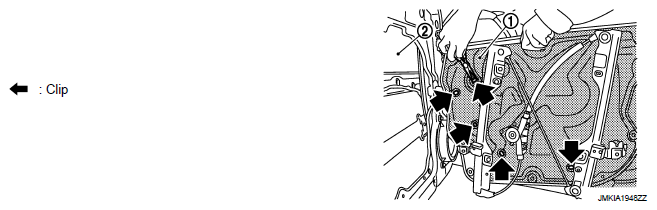

    Fig 2: Identifying Harnesses Fixing Clips
    G05982154Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the door module assembly from the door panel.
  5. Remove the front door glass run.
