Left Side

WARNING: This page is about a different variant/trim than selected.

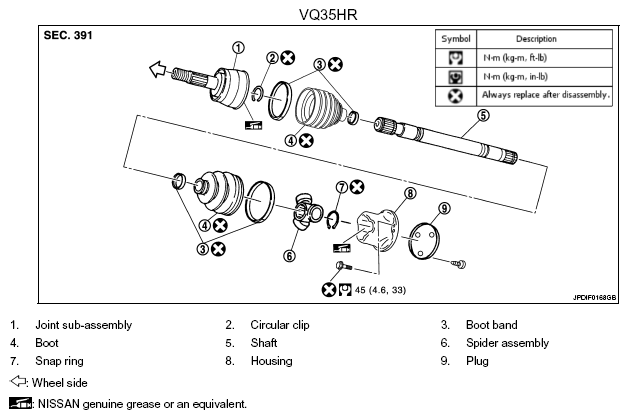

Fig 1: Exploded View Of Front Drive Shaft - VQ35HR (Left Side) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols not described on the above.

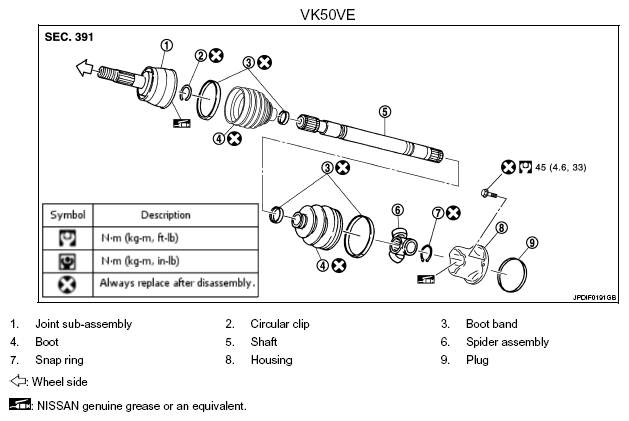

Fig 2: Exploded View Of Front Drive Shaft - VK50VE (Left Side) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols not described on the above.
