Push -Button Ignition Switch Connector End View (M50)

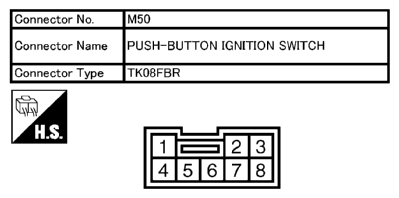

Fig 1: Push -Button Ignition Switch Connector End View (M50)

G10640407

Courtesy of NISSAN NORTH AMERICA, INC.
