AWD: Exploded View
AWD: Exploded View

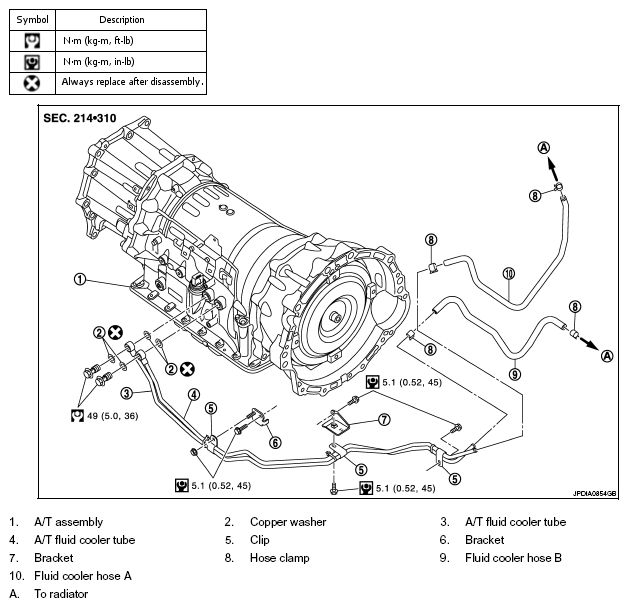

Fig 1: View Of AWD Fluid Cooler System With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols above.
