Exploded View

WARNING: This page is about a different car, the 2010 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

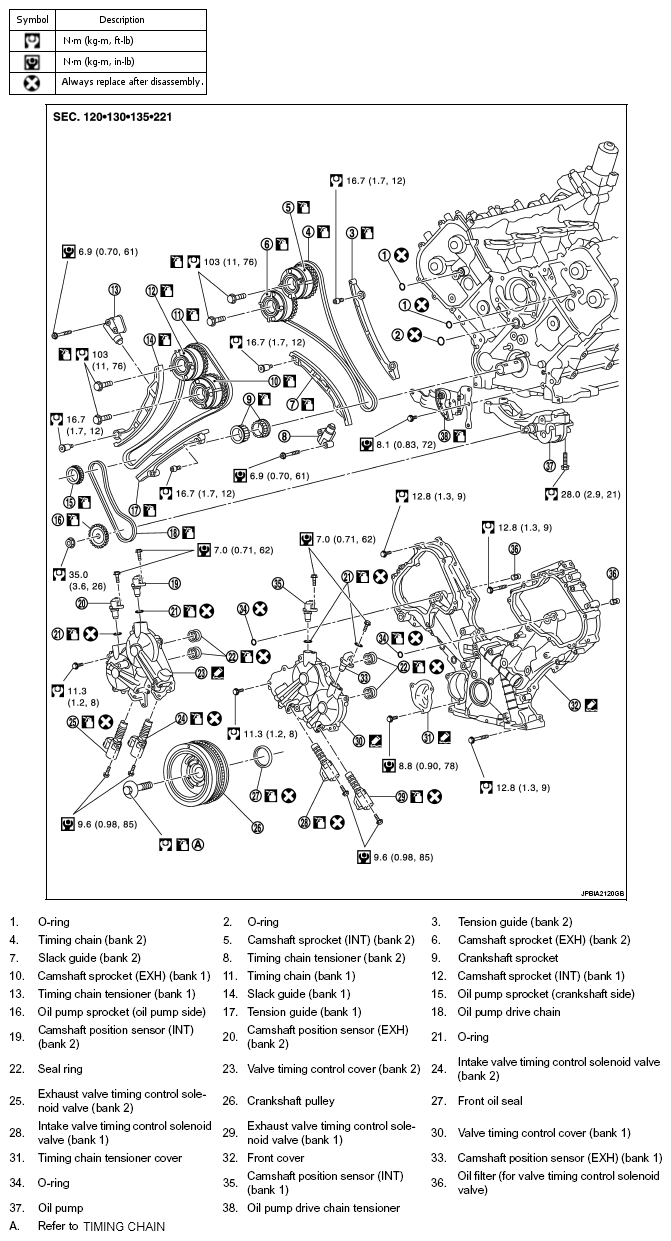

Fig 1: Exploded View Of Timing Chain With Torque Specification

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbol marks above.

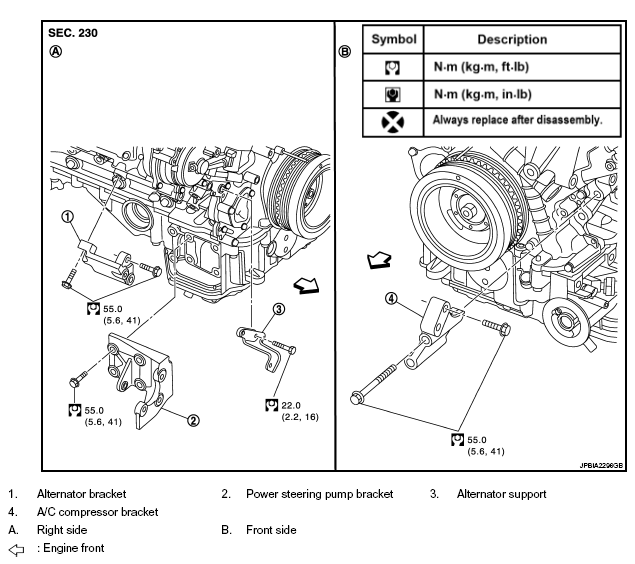

Fig 2: Alternator Bracket, Power Steering Pump Bracket And Alternator Support With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbol marks above.
