Exploded View

WARNING: This page is about a different car, the 2010 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

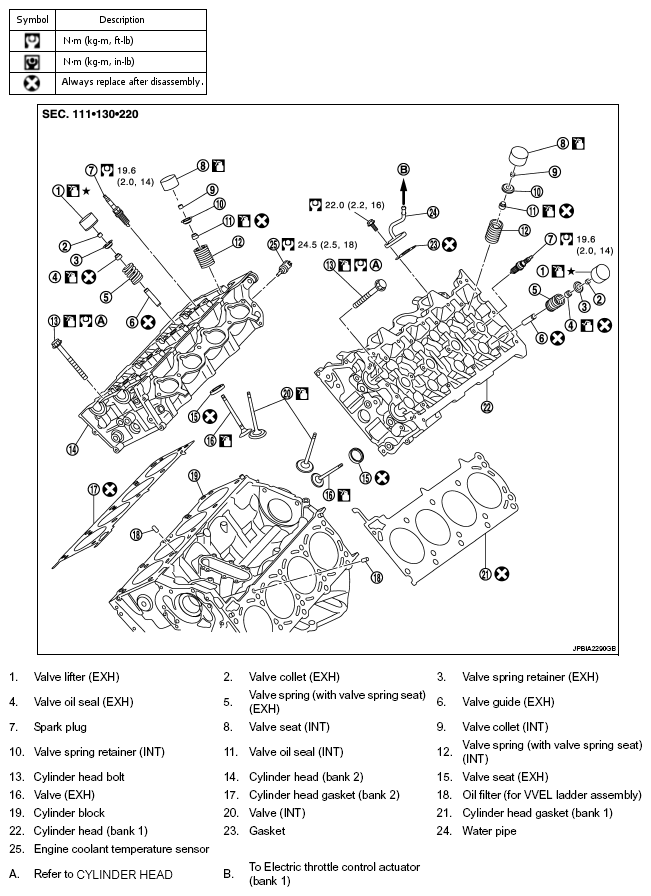

Fig 1: Exploded View Of Cylinder Head With Torque Specification

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbol marks above.

CAUTION: A high degree of precision is required for a valve on the intake side. Never remove the valve related parts unless necessary.

NOTE:

As for replacement of parts on the intake side as shown in the exploded view, replace VVEL ladder assembly & cylinder head assembly. Only valve oil seals are replaceable as a single part.
VVEL ladder assembly cannot be replaced as a single part, because it is machined together with cylinder head assembly.
