Exploded View
>>
AWD models
AWD models

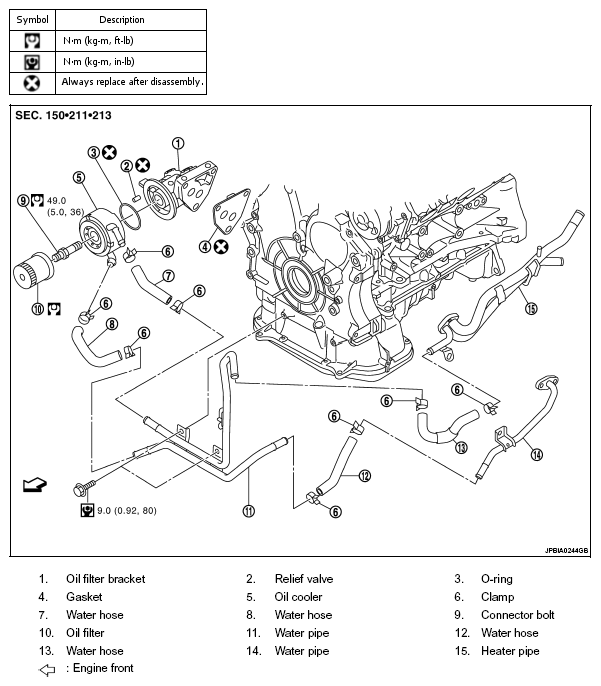

Fig 1: Exploded View Of Oil Cooler With Torque Specifications (2WD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols in the graphic.
