Exploded View
>>
2WD models
2WD models

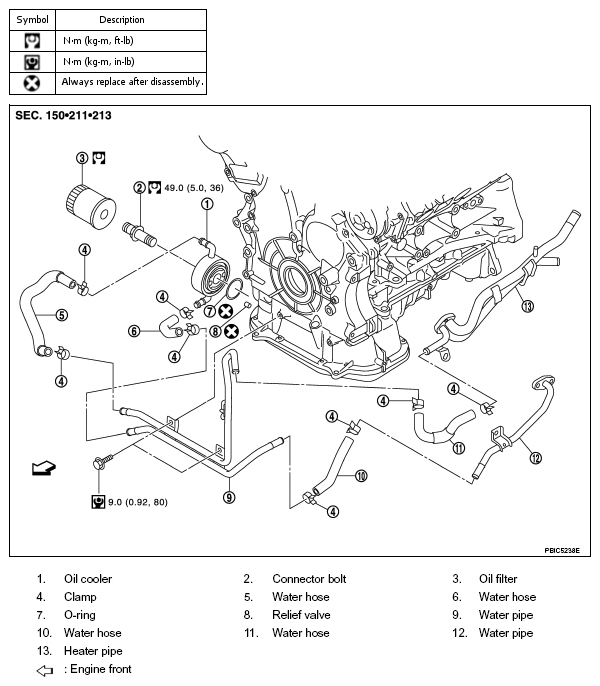

Fig 1: Exploded View Of Oil Cooler With Torque Specification (2WD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols in the graphic.
