Removal and Installation: Removal

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove hood lock cover. Refer to EXPLODED VIEW .
  2. Disconnect ambient sensor connector (A), and then remove ambient sensor (1).

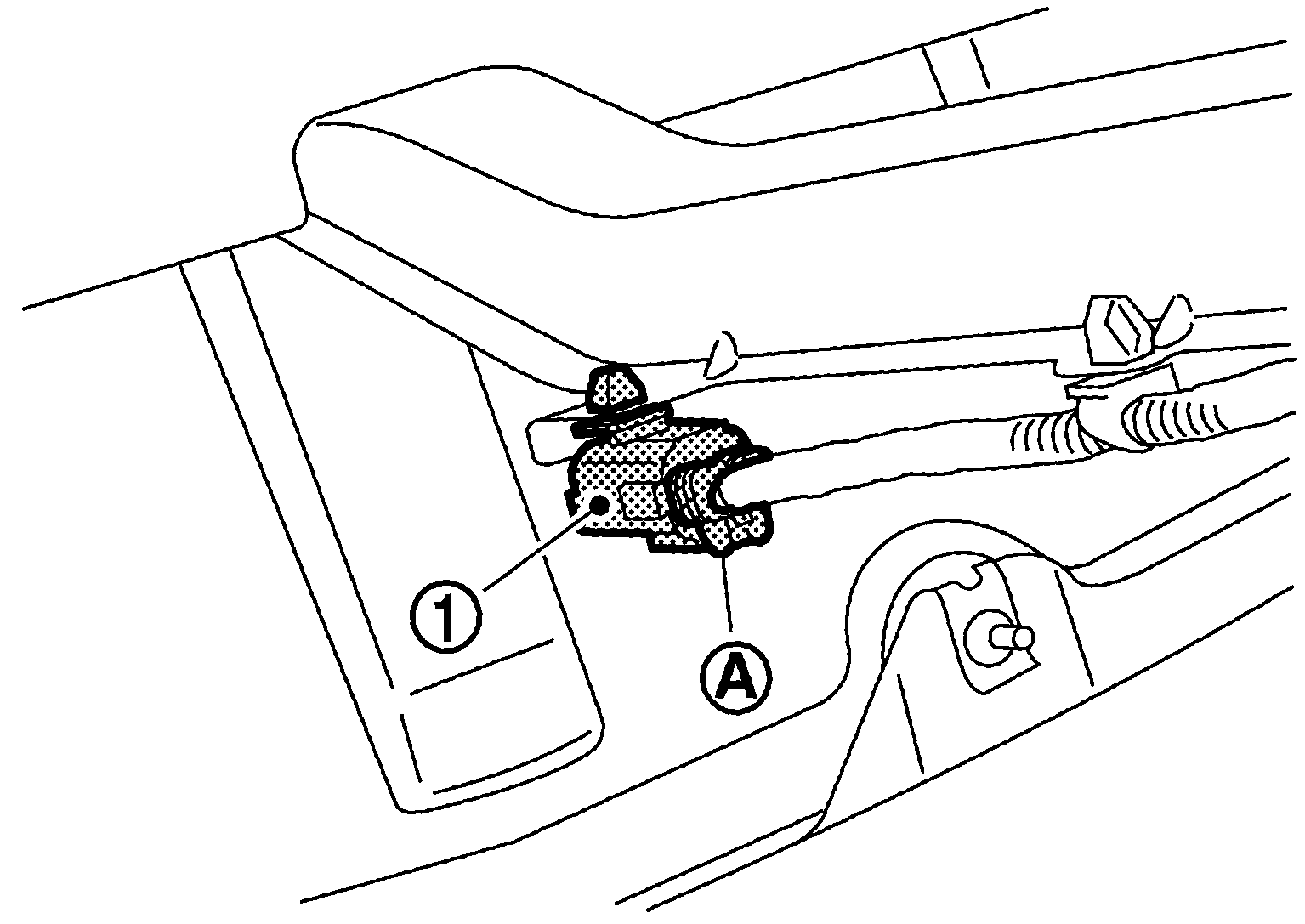

    Fig 1: Identifying Ambient Sensor Connector & Ambient Sensor
    G05727522Courtesy of NISSAN MOTOR CO., U.S.A.
