LEMON Manuals
: Even more car manuals for everyone
Home
>>
Infiniti
>>
2009
>>
QX56 AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Function Diagnosis
>>
A/T Control System
>>
Component Parts Location
Component Parts Location

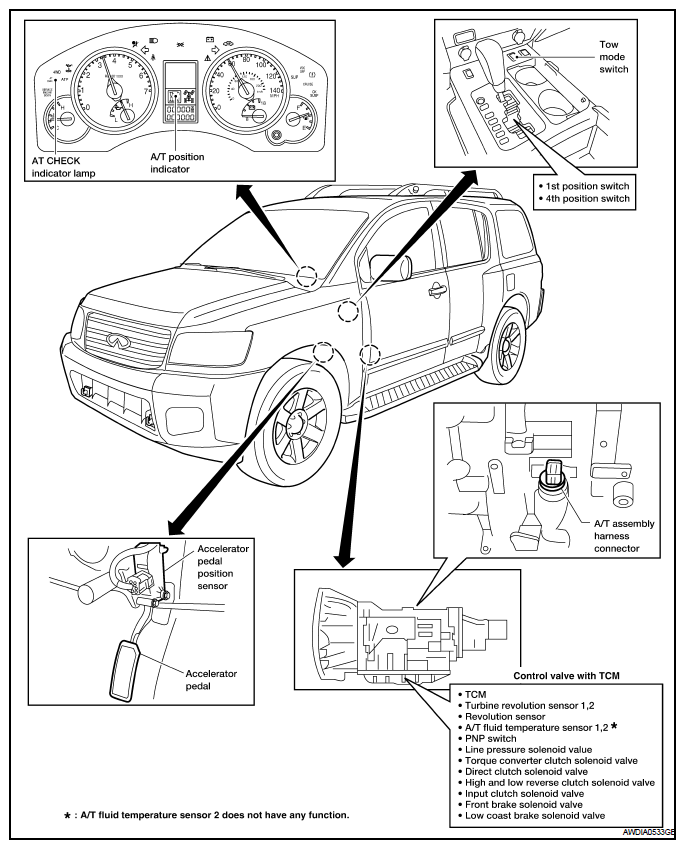

Fig 1: Identifying A/T Control System Component Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
