Disassembly And Assembly: Overhaul: Component: 4WD

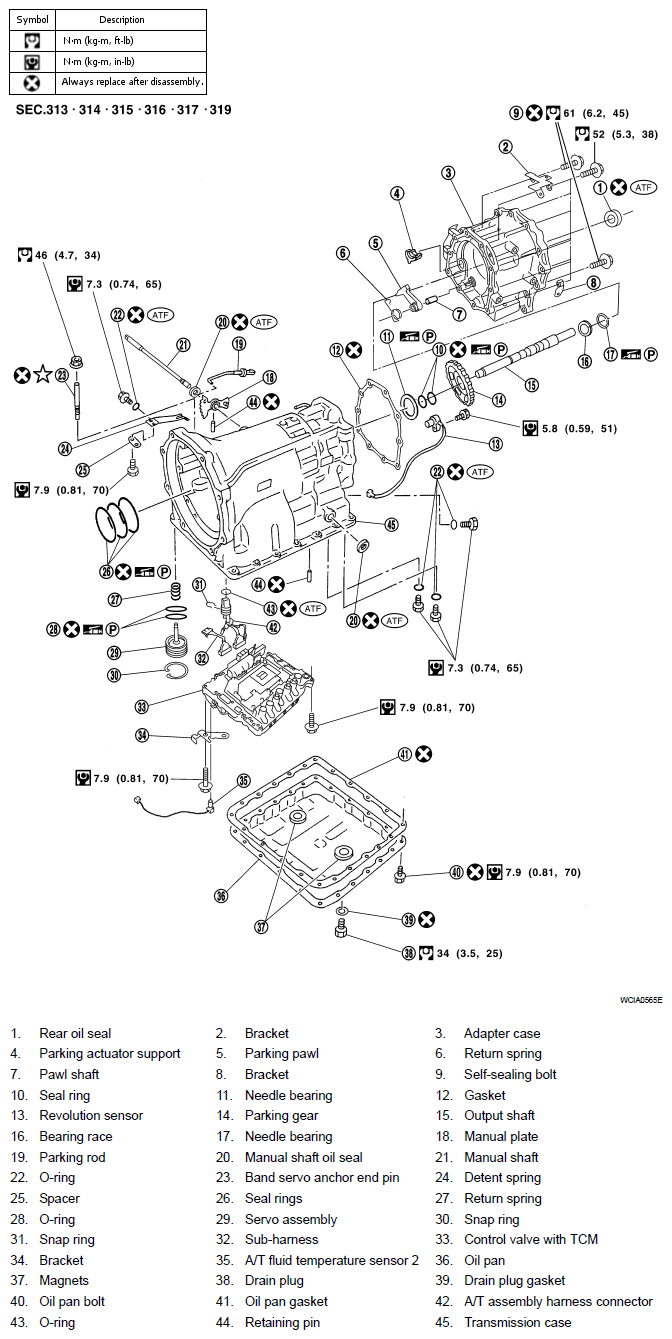

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications (4WD)

G06316269

Courtesy of NISSAN MOTOR CO., U.S.A.
