Notes
Disassembly and Assembly: Notes

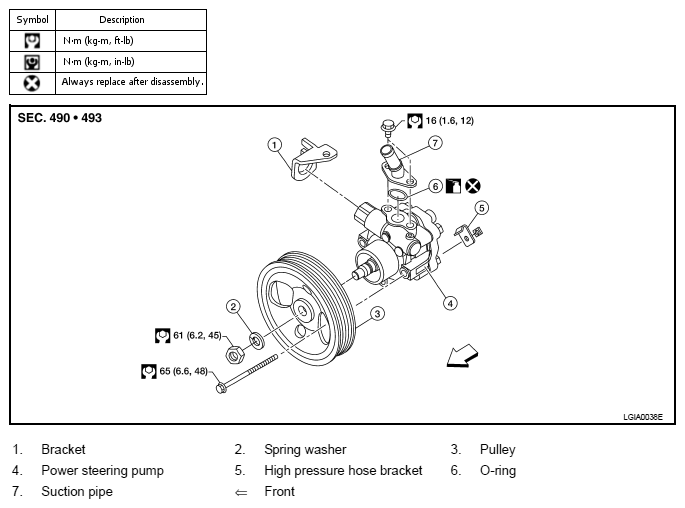

Fig 1: Disassembled View Of Power Steering Oil Pump With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
