Front Passenger Air Bag Module

The front passenger air bag module is located behind the instrument panel assembly. It operates with the SRS system in a frontal collision exceeding a specified level. Refer to "OCCUPANT CLASSIFICATION SYSTEM (OCS) " for more information.

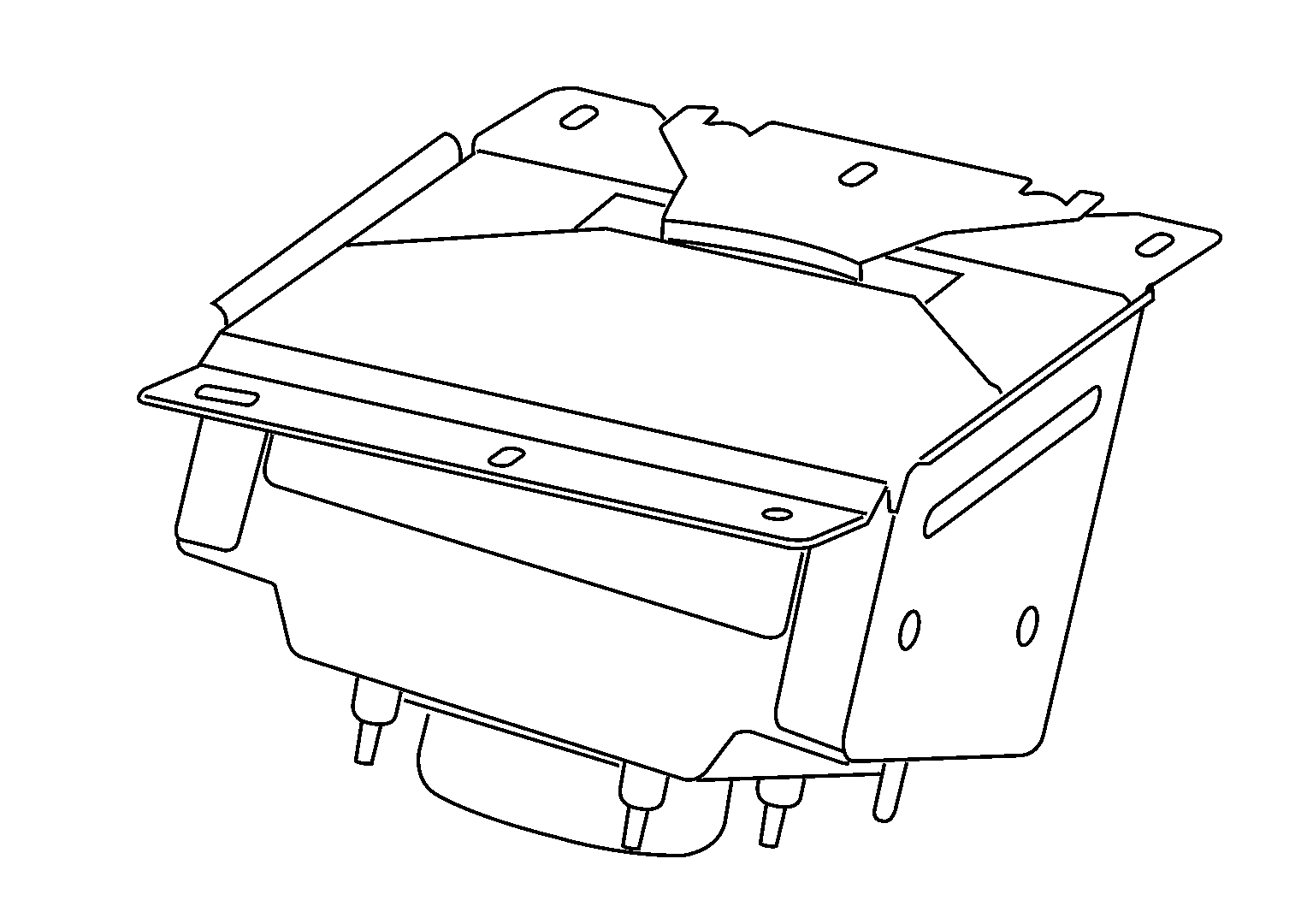

Fig 1: Identifying Front Passenger Air Bag Module
G04902354Courtesy of NISSAN MOTOR CO., U.S.A.
