Diagnosis Procedure

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
  Refer to "GROUND INSPECTION ".

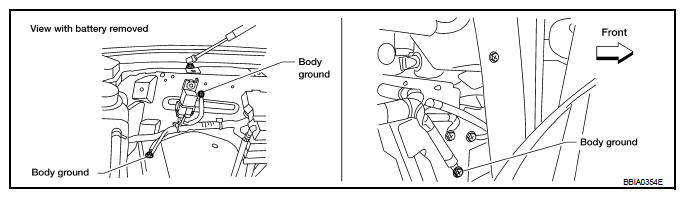

  Fig 1: Identifying Ground Screws On Body
  Courtesy of NISSAN MOTOR CO., U.S.A.

  OK or NG

  OK: GO TO 2.

  NG: Repair or replace ground connections.
CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 3.

NG: Replace engine coolant temperature sensor.
CHECK INTERMITTENT INCIDENT
Refer to "HOW TO CHECK TERMINAL " and "INTERMITTENT INCIDENT ".

For Wiring Diagram, refer to "WIRING DIAGRAM - ENGINE CONTROL SYSTEM - ".

INSPECTION END
