Instrument Upper Panel RH
>>
Exploded View
Exploded View

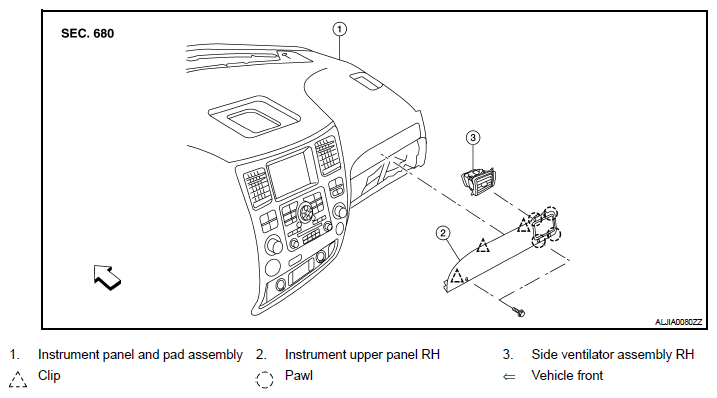

Fig 1: Exploded View Of Instrument Upper Panel RH
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
