Removal and Installation: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the fan shroud. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the drive belt. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove lower bracket, using power tools.
  5. Remove the generator upper bolt, using power tools.
  6. Disconnect the generator harness connectors.
  7. Remove the generator.

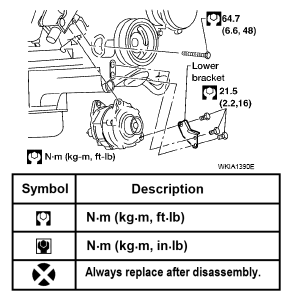

    Fig 1: Generator Replacement Components With Torque Specifications
    G04903581Courtesy of NISSAN MOTOR CO., U.S.A.
