Oil Pressure Switch: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

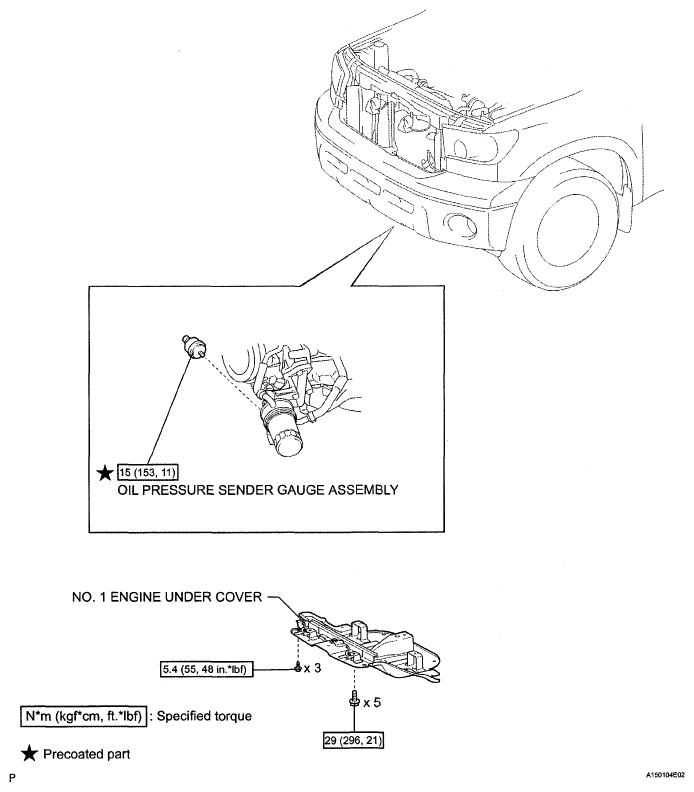

Fig 1: Oil Pressure Switch Components With Torque Specifications
G05157827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
