Radio Antenna: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

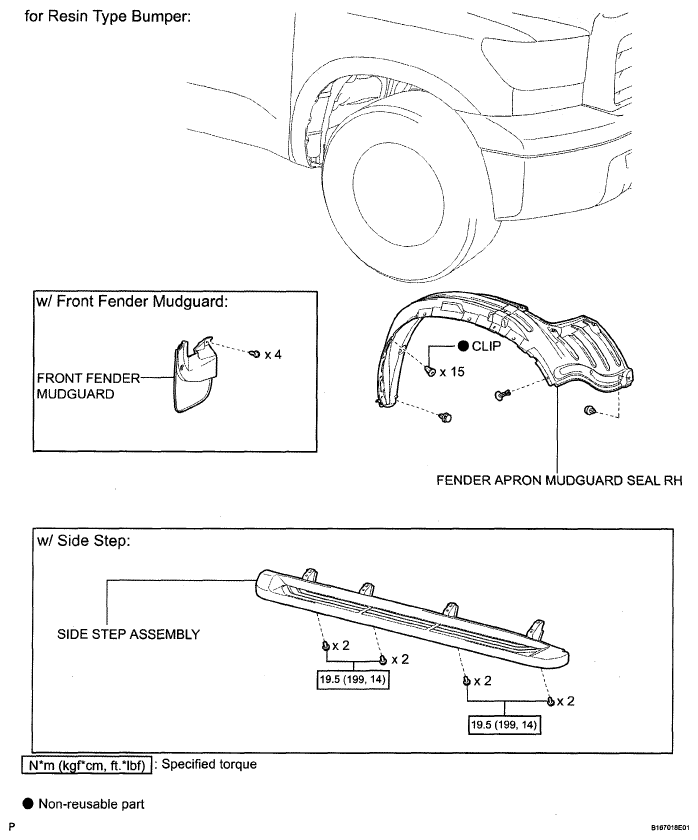

Fig 1: Resin Type Bumper Replacement Components With Torque Specifications
G05156497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

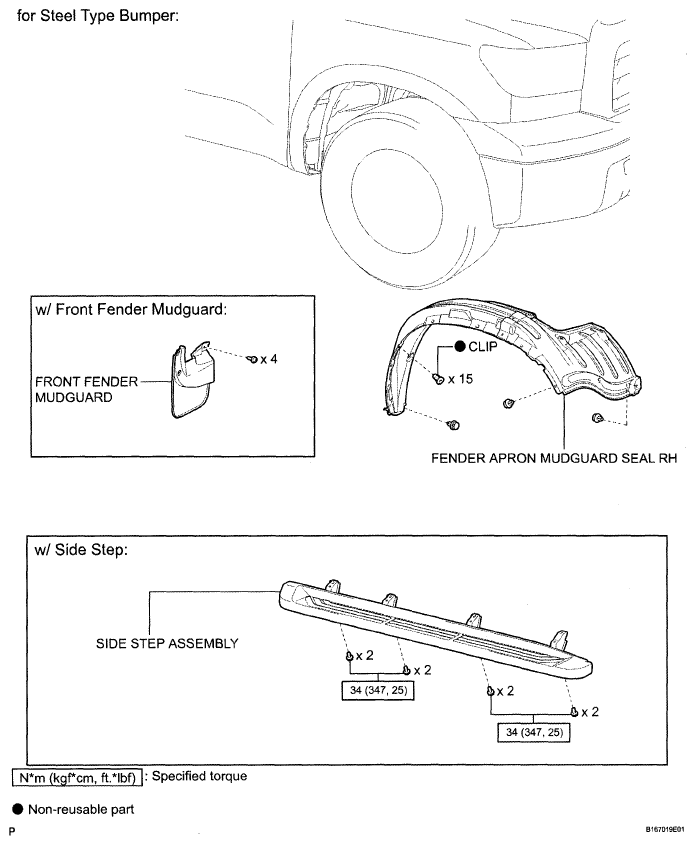

Fig 2: Steel Type Bumper Replacement Components With Torque Specifications
G05156498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

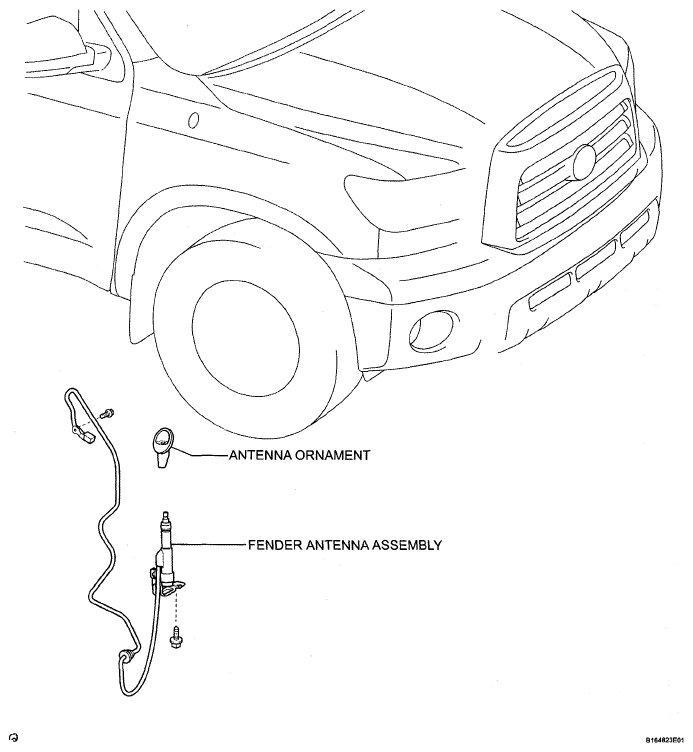

Fig 3: Identifying Radio Antenna Components
G05156499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
