Trouble Diagnosis: Schematic

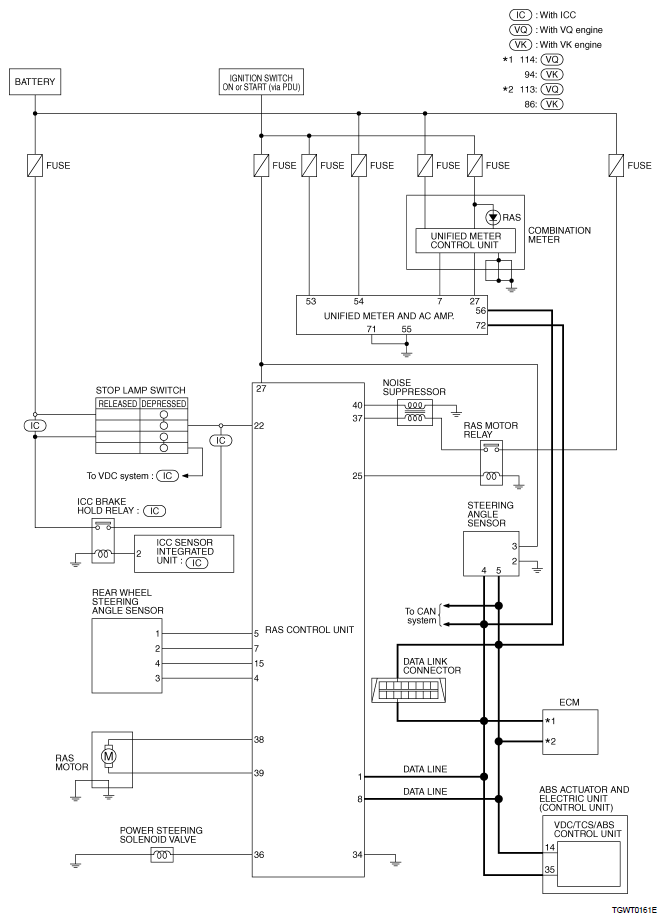

Fig 1: RAS Trouble Diagnosis Schematic Diagram

G06310460

Courtesy of NISSAN MOTOR CO., U.S.A.
