Removal and Installation: Components

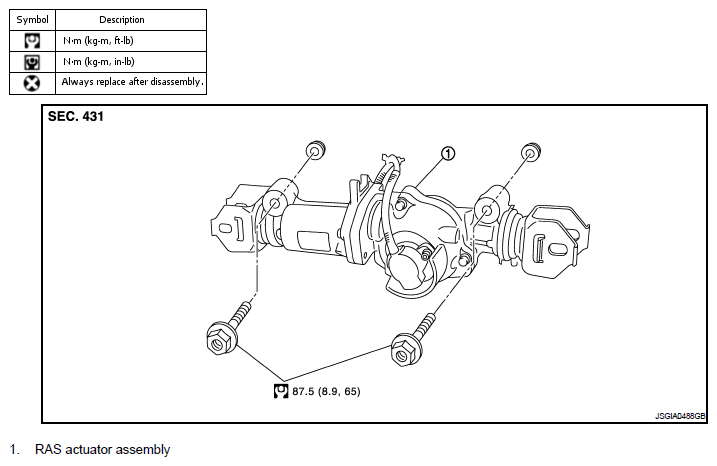

Fig 1: RAS Actuator Assembly With Torque Specification

G06310454

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "CONTENTS ", for the symbols in the figure.
