Removal Of Steering Column Assembly

  1. Set vehicle to the straight-ahead position.
  2. Remove driver air bag module. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove steering wheel. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove steering column cover. Refer to INSTRUMENT PANEL ASSEMBLY .
  5. Remove combination switch & spiral cable. Refer to "REMOVAL AND INSTALLATION ".
  6. Remove instrument driver lower panel. Refer to INSTRUMENT PANEL ASSEMBLY .

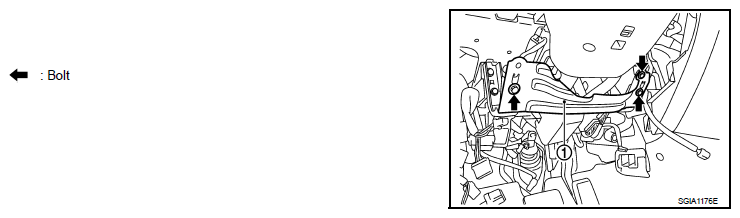

  7. Remove fixing bolts of knee protector (1), then remove knee protector (1) from vehicle.
    Fig 1: Locating Knee Protector Bolts
    G06310365Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove low tire pressure warning control unit. Refer to "LOW TIRE PRESSURE WARNING CONTROL UNIT ".
  9. Disconnect each switch connectors installed to steering column assembly, and then disconnect harness from steering column assembly.

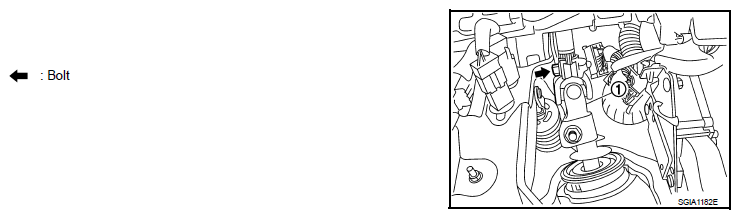

  10. Remove fixing bolt of upper joint (1) (steering column assembly side).
    Fig 2: Locating Upper Joint Fixing Bolt
    G06310366Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove steering column assembly mounting bolts and nut, then remove steering column assembly from vehicle.
