Headlamp Aiming Control: Schematic

WARNING: This page is about a different car, the 2008 Infiniti FX45 and 2008 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

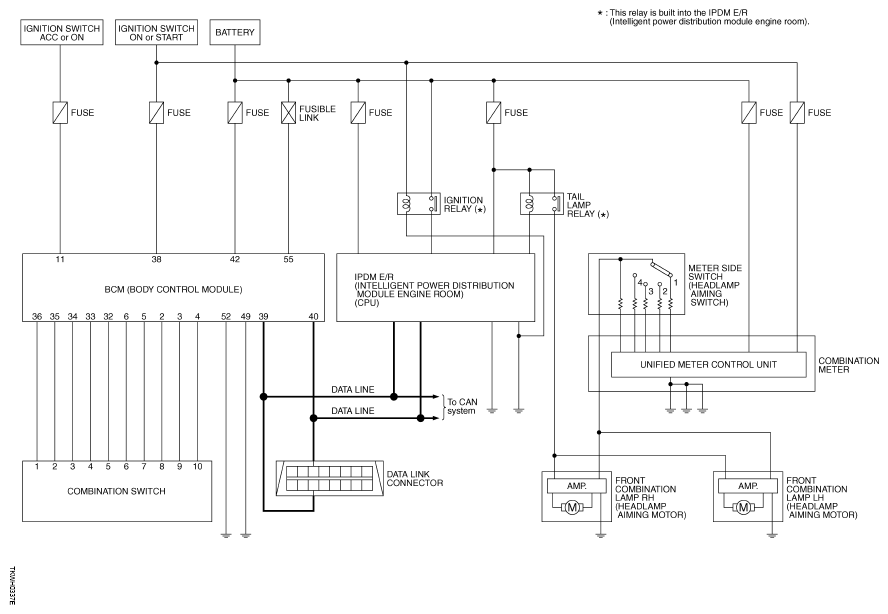

Fig 1: Identifying Headlamp Aiming Control - Schematic Diagram
G05222066Courtesy of NISSAN MOTOR CO., U.S.A.
