Front Propeller Shaft: Components

WARNING: This page is about a different car, the 2008 Infiniti FX45 and 2008 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

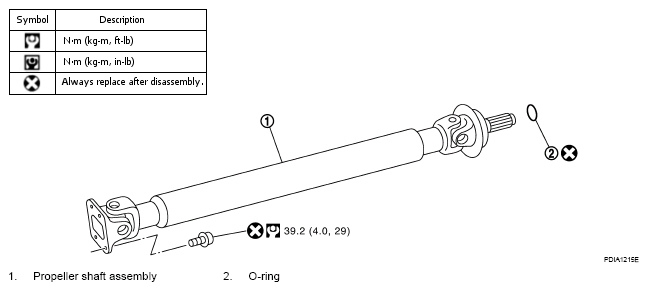

Fig 1: Propeller Shaft Assembly And O-Ring With Torque Specifications
G05225411Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for the symbols in the figure.
