BACK WINDOW GLASS (for CrewMax): Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

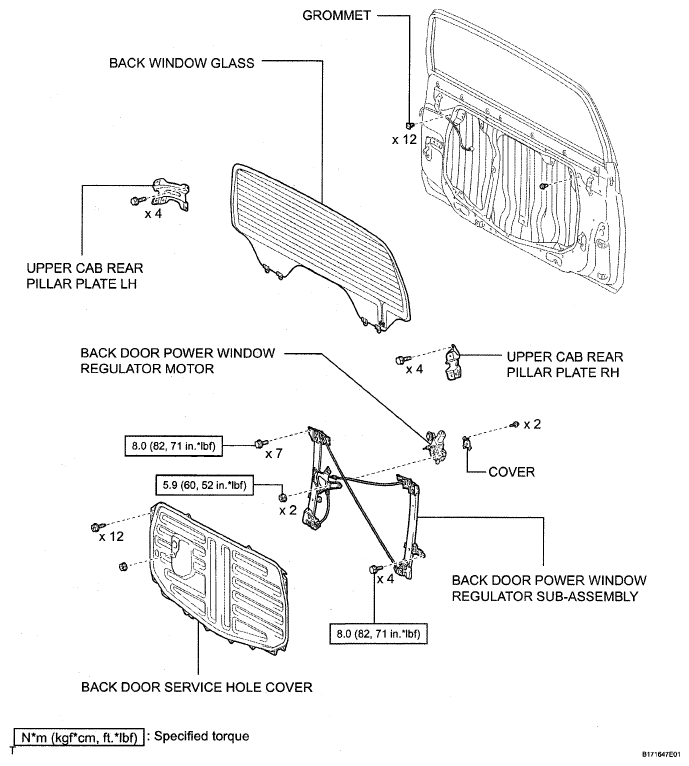

Fig 1: Back Window Glass (For Crewmax) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

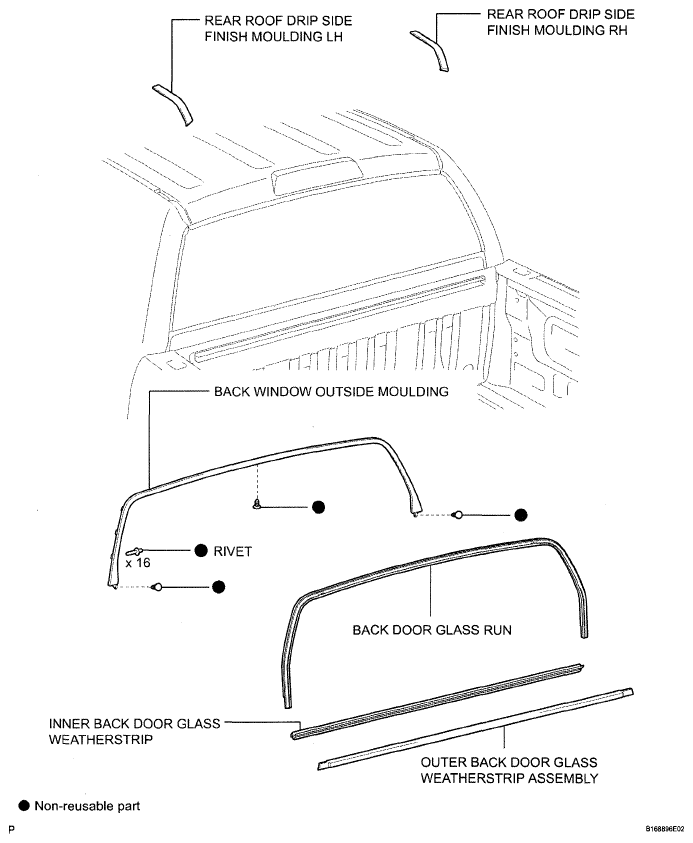

Fig 2: Back Window Glass (For Crewmax) Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

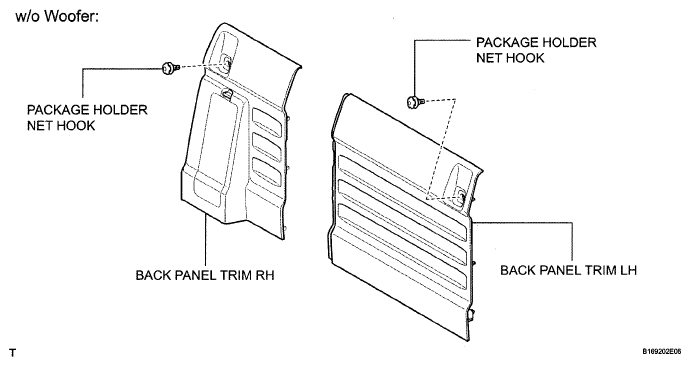

Fig 3: Identifying Back Window Glass (For Crewmax) Components - W/O Woofer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

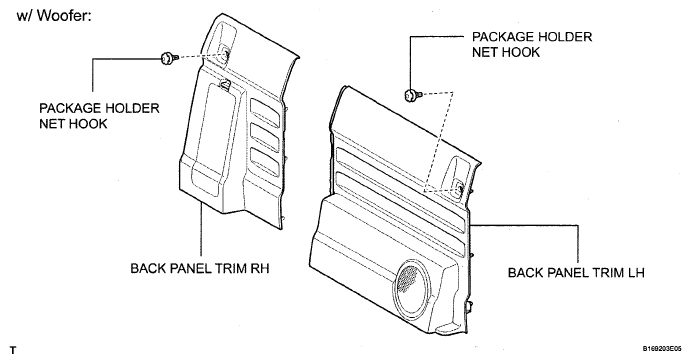

Fig 4: Identifying Back Window Glass (For Crewmax) Components - W/ Woofer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

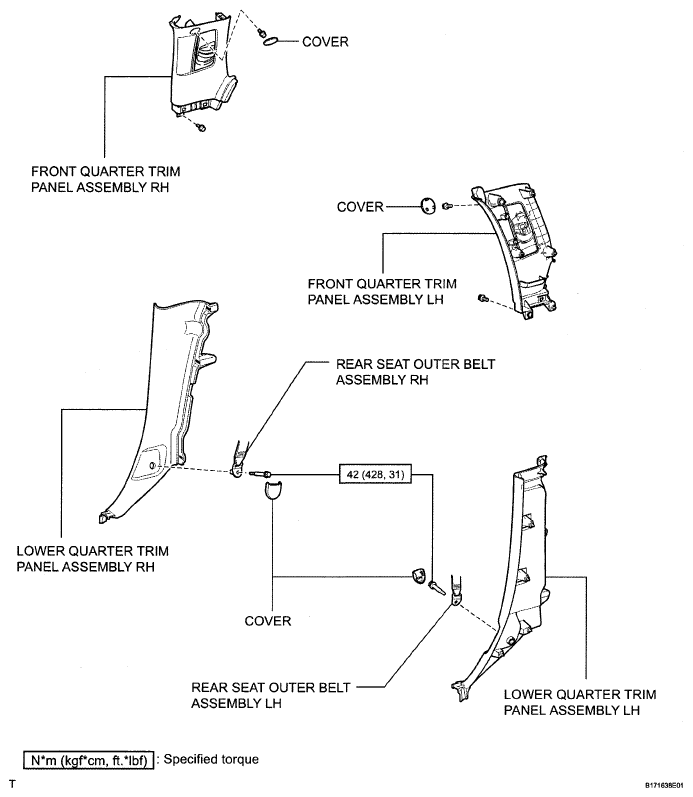

Fig 5: Back Window Glass (For Crewmax) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

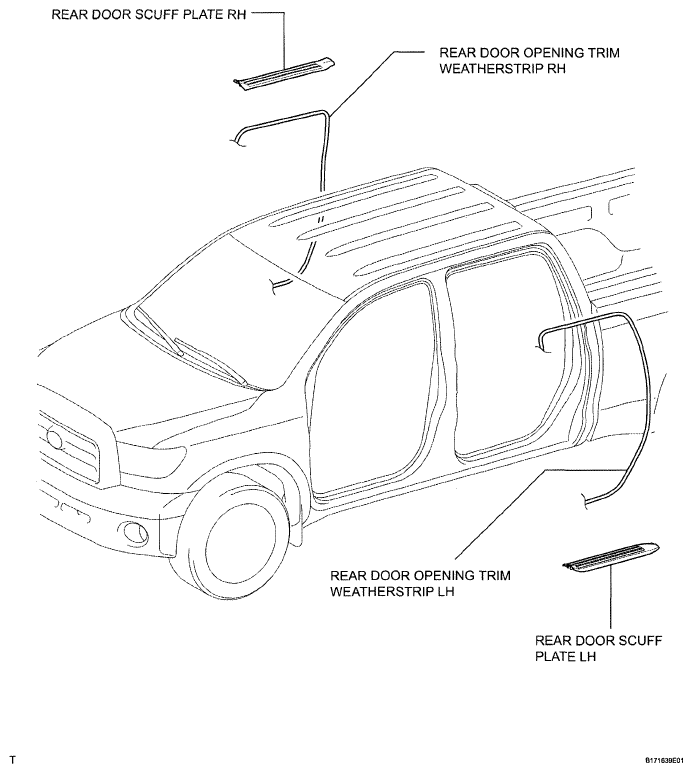

Fig 6: Back Window Glass (For Crewmax) Replacement Components With Torque Specifications (2 Of 2)

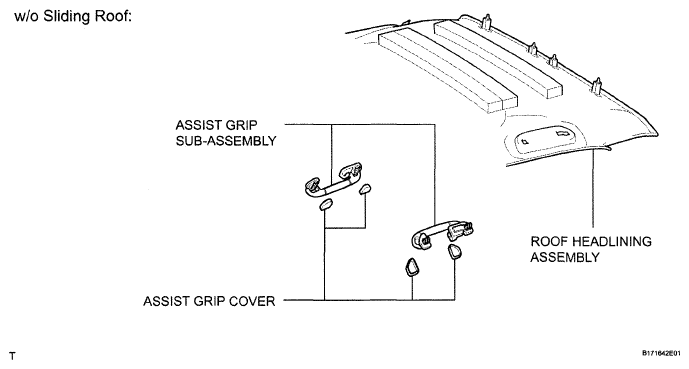

Fig 7: Identifying Back Window Glass (For Crewmax) Components - W/O Sliding Roof

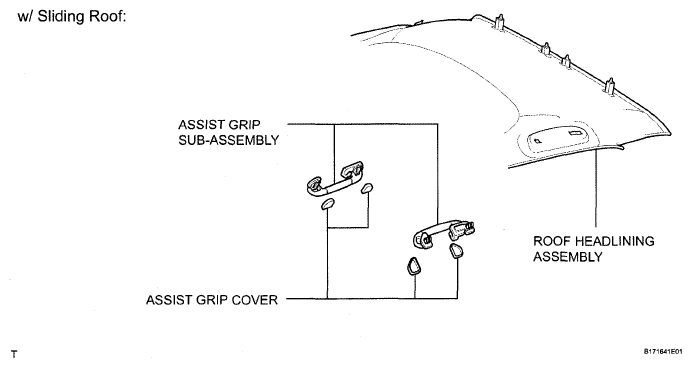

Fig 8: Identifying Back Window Glass (For Crewmax) Components - W/ Sliding Roof
