Outer Rear View Mirror: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Outer Rear View Mirror Replacement Components (1 Of 2)
G05161679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

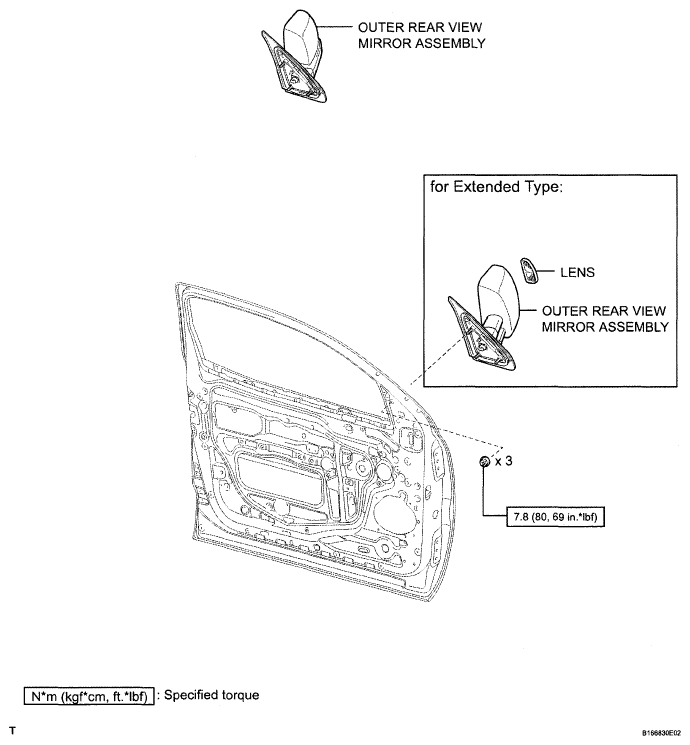

Fig 2: Identifying Outer Rear View Mirror Replacement Components And Torque Specification (2 Of 2)
G05161680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
