System Description

Meter/Gauge:

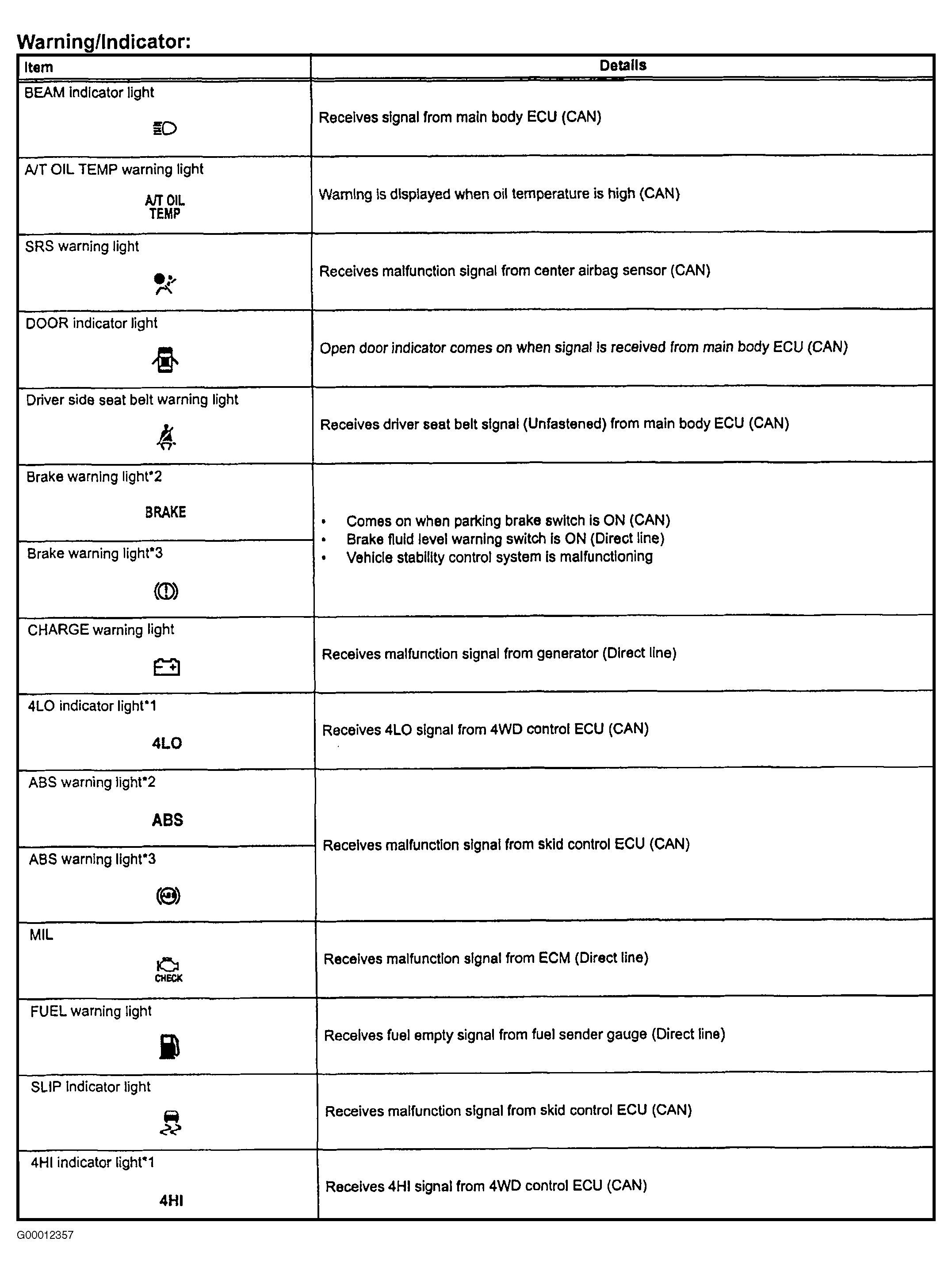

Warning/Indicator:

Fig 1: Meter Warning Indicator Identification Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

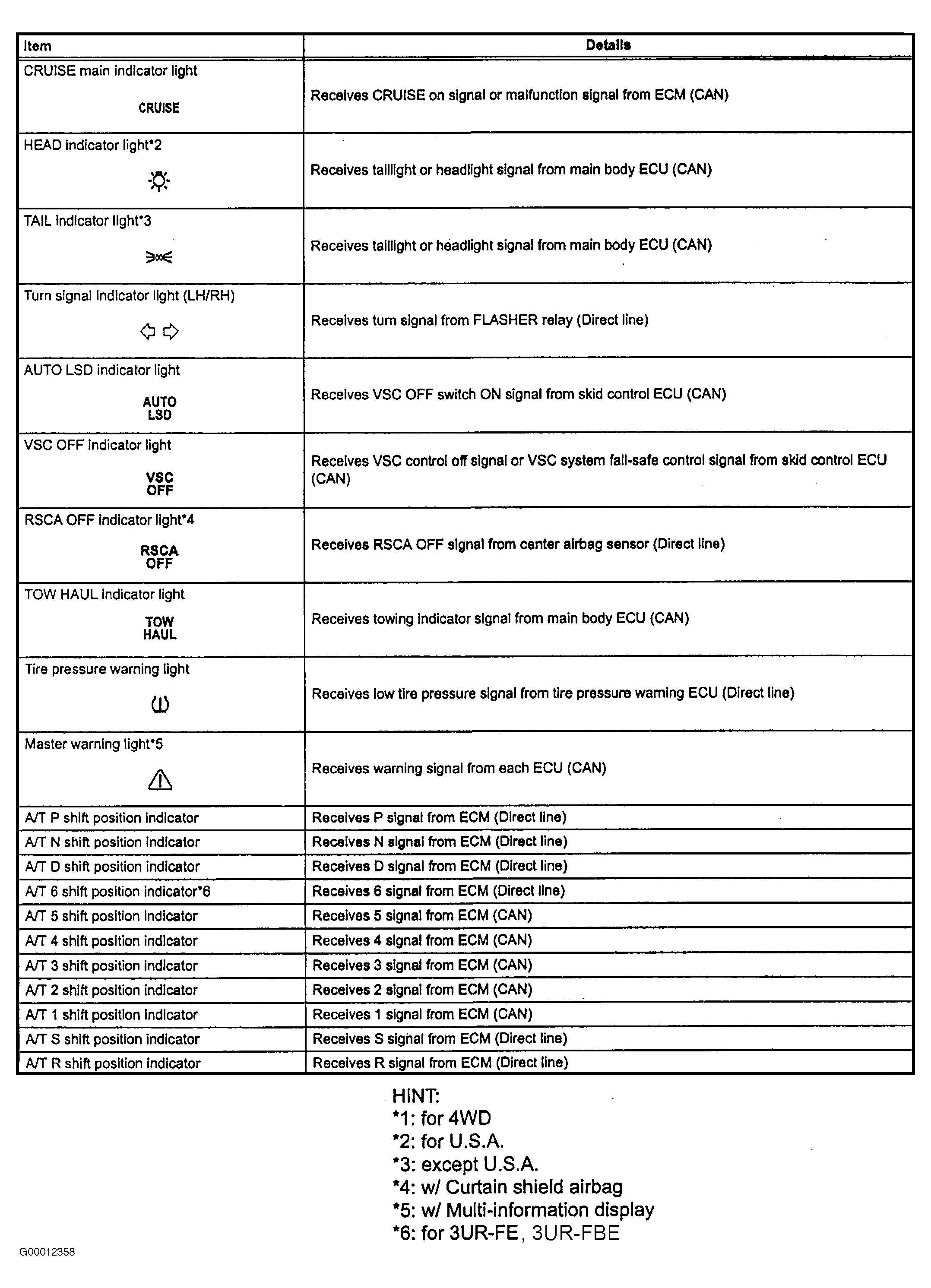

Fig 2: Meter Warning Indicator Identification Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

When the INFO switch is pressed, the multi-information display is changed between the following: cruise information display, warning display.

1. Cruise information display:

   The cruise information is displayed in the following order each time the INFO switch is pressed.

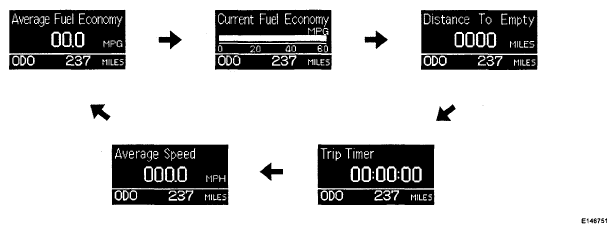

   Fig 3: Multi-Information Display (w/ Multi-Information Display)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   MULTI-INFORMATION REFERENCE CHART



   Display	Outline
   Average Fuel Economy	Value that has been calculated by combination meter, which is based on distance driven and fuel consumption volume (fuel injection signal from No. 1 cylinder) This display is updated every 10 seconds
   Current Fuel Economy	Value that has been calculated by combination meter. When ignition switch is turned ON, combination meter calculates this value based on distance driven and fuel consumption volume (fuel injection signal from No. 1 injector). This display is updated every 0.5 seconds
   Distance To Empty	Value that has been calculated by combination meter. When ignition switch is turned ON, combination meter calculates this value based on fuel consumption data that combination meter continuously monitors and stores in its memory, and residual fuel volume data. This display is updated every km (mile)
   Trip Timer	Calculates and displays elapsed time since engine start signal was input into combination meter This display is updated every second
   Average Speed	Value that has been calculated by combination meter. This calculation is based on elapsed time since engine start signal was received by combination meter and vehicle speed signal received by combination meter. This display is updated every 10 seconds

2. Warning display:

   When a warning is necessary, the warning display interrupts the multi-information display.

   • The master warning light may illuminate or blink and buzzer may sound depending on the item in the multi-information display.

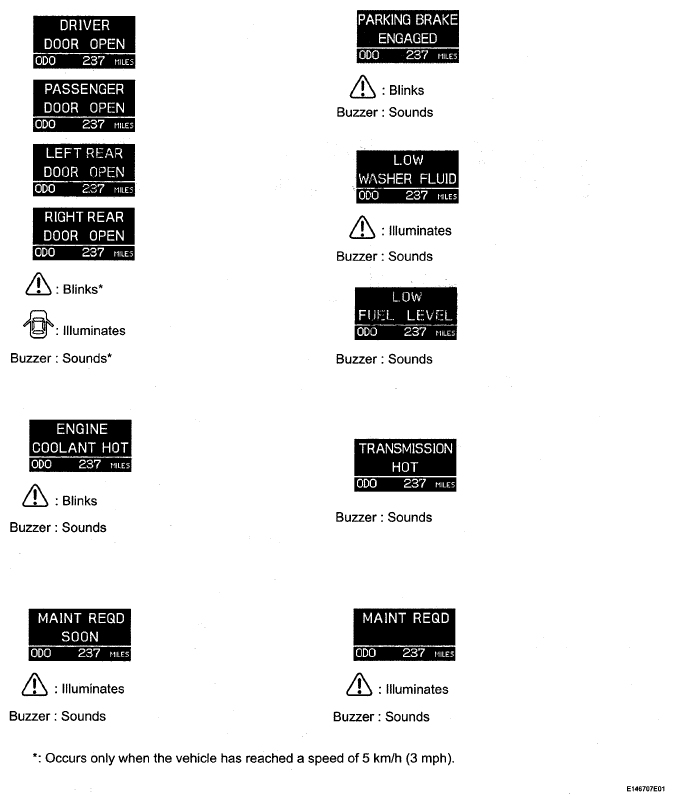

     Fig 4: Multi-Information Display - Vehicle Speed

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
     MULTI-INFORMATION REFERENCE CHART



     Display	Details
     DRIVER DOOR OPEN PASSENGER DOOR OPEN LEFT REAR DOOR OPEN RIGHT REAR DOOR OPEN	Any door is open
     ENGINE COOLANT HOT	Engine coolant temperature is more than 120°C (248°F)
     MAINT REQD SOON	Comes on approximately 7242 km (4500 miles) after engine oil is changed
     PARKING BRAKE ENGAGED	Parking brake is still engaged with vehicle having reached speed of 5 km/h (3 mph)
     LOW WASHER FLUID	Washer fluid level is low
     LOW FUEL LEVEL	Fuel level is low
     TRANSMISSION HOT	ATF temperature is high
     MAINT REQD	Comes on approximately 8047 km (5000 miles) after engine oil is changed

1. This system has the following functions.
   1. Clock:

      When the ignition switch is turned ON or ACC, the clock display is ON.

   2. Cruise Information:

      For cruise information, four type of information (Outside temperature, average fuel economy, instant fuel economy, and distance to empty) can be displayed.

      The cruise information units can be changed by using the SETUP switch.

      Outside temperature → Average fuel economy → Instant fuel economy → Distance to empty.

      METER REFERENCE



      Information	Outline
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Displays outside temperature in accordance with the outside temperature sensor signal from the A/C amplifier (manual A/C) or A/C ECU (auto A/C).
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Displays a value that has been calculated by the combination meter, which is based on the distance driven and the fuel consumption volume (fuel injection signal from the No. 1 cylinder). This display is updated every 0.5 seconds.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Displays a value that has been calculated by the combination meter. When the ignition switch is turned ON, the combination meter calculates this value based on the distance driven and the fuel consumption volume (fuel injection signal from the No. 1 injector). This display is updated every 0.5 seconds.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	When the ignition switch is ON, displays a value that has been calculated by the combination meter (meter ECU), which is based on the following: 1) fuel consumption data that the combination meter (meter ECU) continuously monitors and stores in its memory; and 2) residual fuel volume data. This display is updated every 1 mile (1.6 km).

   3. Security Indicator Light:
      • informs the driver of the theft deterrent system status.
      • Depending on operation of the transponder key ECU, the interior security indicator light comes on or starts blinking.
   4. Clearance Warning Indicator:
      • Displays the location of the obstacle and the approximate distance between the vehicle and the obstacle.
      • Turns on and off according to the intuitive parking assist system status.
      • Emits an intermittent sound to inform the driver that the ECU has detected an obstacle within the prescribed ranges.
