Air Cleaner: Installation

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL AIR CLEANER ASSEMBLY
1. Install the air cleaner case with the 2 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  Fig 1: Identifying Air Cleaner Case Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the air cleaner element onto the air cleaner case.
3. Install the air cleaner cap.
  1. Fasten the 4 hook clamps.
  2. Connect the MAF meter connector.
  3. Attach the wire harness clamp.

    Fig 2: Identifying Air Cleaner Element
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 VENTILATION HOSE
1. Install the No. 2 ventilation hose and vacuum hose.

  Fig 3: Identifying No. 2 Ventilation Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER HOSE ASSEMBLY
1. Install the air cleaner hose.
  Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  HINT:

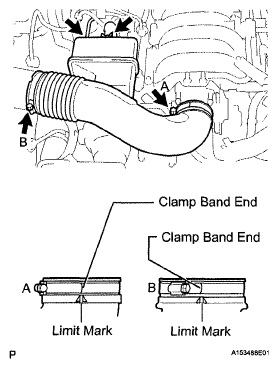

  Make sure that the clamp band end is aligned with the limit mark when the hose clamp is tightened, as indicated by A and B in the illustration.

  Fig 4: Identifying Air Cleaner Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the vacuum hose.
3. Connect the No. 2 ventilation hose.
INSTALL THROTTLE BODY COVER SUB-ASSEMBLY
1. Install the throttle body cover with the 2 cap nuts.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  Fig 5: Locating Throttle Body Cover With Cap Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
